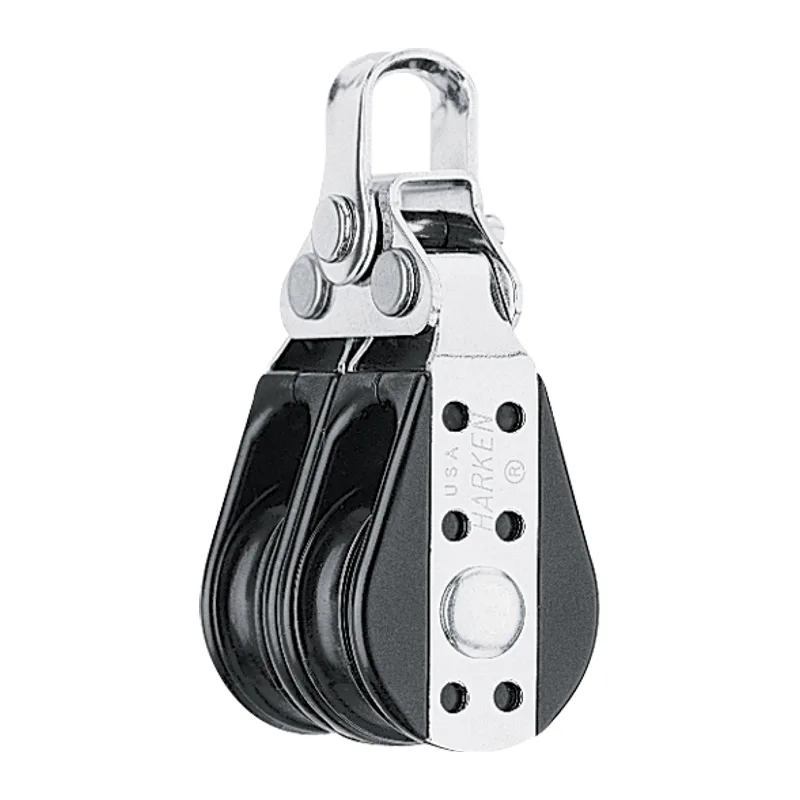

    Harken 084 Double Bullet Block
    Harken 084

    Double Bullet Block

    The Harken 084 Double Bullet Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $54.95List $62.60

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    084
    UPC
    097653002901
    Harken catalogue
    Page 36

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    29 mm1 1/8 in
    Length
    70 mm2 3/4 in
    Weight
    71 g2.5 oz
    Shackle pin diameter
    5 mm3/16 in
    Max line diameter
    8 mm5/16 in
    Max working load
    181 kg400 lb
    Breaking load
    907 kg2000 lb

    From the Harken 2026 catalogue.

    CAD drawings
    End view (DWG) Side view (DWG)
