J/70

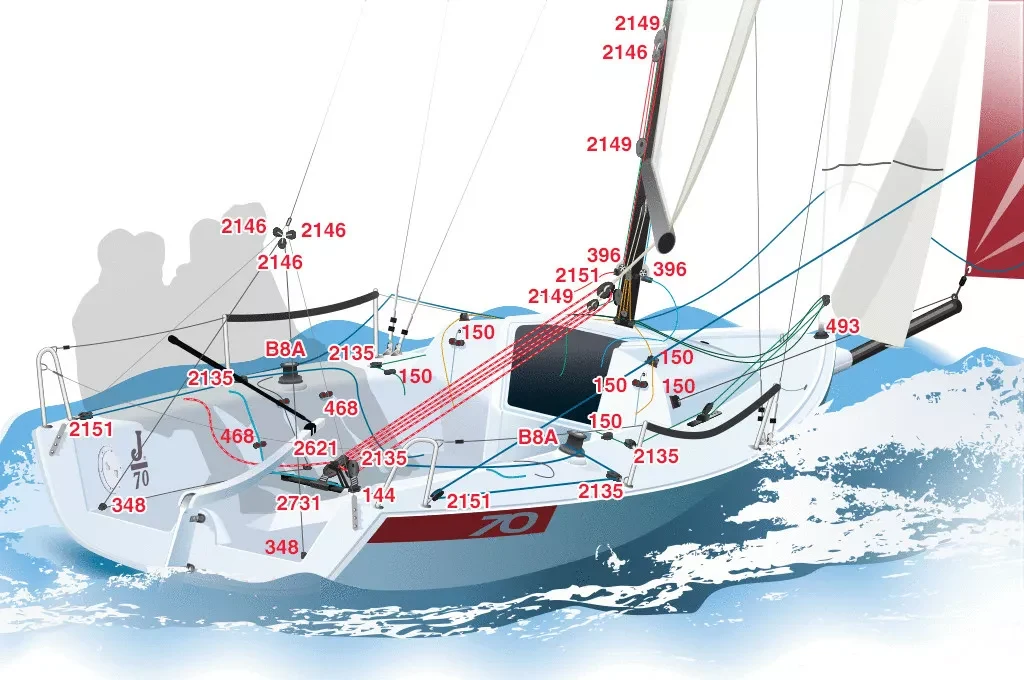

Harken hardware for the J/70, shown where each part goes on deck, with the class's rigging lines and Lion Sailing sails.

Layout drawing: Harken, Inc.

See the part

All J/70 hardware, 24 fittings$3,331.70

Mainsheet

$334.85

144 Ball Bearing Swivel Mainsheet Cam Base Swivel cam base the mainsheet cleats in. x 1 $180.95List $205.65

x 1

$180.95List $205.65

2135 57mm Carbo Ratchet Block Mainsheet ratchet block on the cockpit floor. x 1 $86.95List $98.25

x 1

$86.95List $98.25

2621 57mm Carbo Fiddle Mainsheet fiddle block. x 1 $66.95List $76.40

x 1

$66.95List $76.40

Sheets

$469.70

1017

2151 57mm Carbo T2 Loop Block T2 loop block at the stern corner, turning a sheet forward; one each side. x 2 $60.95List $69.20

x 2

$60.95List $69.20

13151821

2135 57mm Carbo Ratchet Block Ratchet block on the cockpit side, leading a sheet to the trimmer. x 4 $86.95List $98.25

x 4

$86.95List $98.25

Backstay

$89.85

2146 29mm Carbo T2 Block Three T2 blocks on the backstay bridle. x 3 $29.95List $33.30

x 3

$29.95List $33.30

Underdeck furler

$1,966.90

493 Medium Underdeck Furler Underdeck furler at the bow. Lowers the tack and lets you raise, lower or tension the jib (Harken's write-up). x 1 $1,893.95List $2,367.05

x 1

$1,893.95List $2,367.05

396 29mm Carbo Pivot Lead with Carbo Cam Carbo pivoting lead with Carbo-Cam that adjusts the furler's control line (Harken's write-up). x 1 $72.95List $82.95

x 1

$72.95List $82.95

Mast

$225.75

137

2149 40mm Carbo T2 Block Top block on the mast, near the masthead. x 3 $44.95List $50.70

x 3

$44.95List $50.70

2146 29mm Carbo T2 Block Small T2 block just below the top block. x 1 $29.95List $33.30

x 1

$29.95List $33.30

2151 57mm Carbo T2 Loop Block T2 loop block at the mast base, turning a line aft. x 1 $60.95List $69.20

x 1

$60.95List $69.20

Other deck hardware

$244.65

81422

150 Cam-Matic Ball Bearing Cam Cleat Cam-Matic cleat on the cabin top; one each side. Harken's list says 150SP, its drawing says 150; we list the 150. x 3 $44.95List $50.80

x 3

$44.95List $50.80

1112
