J/111

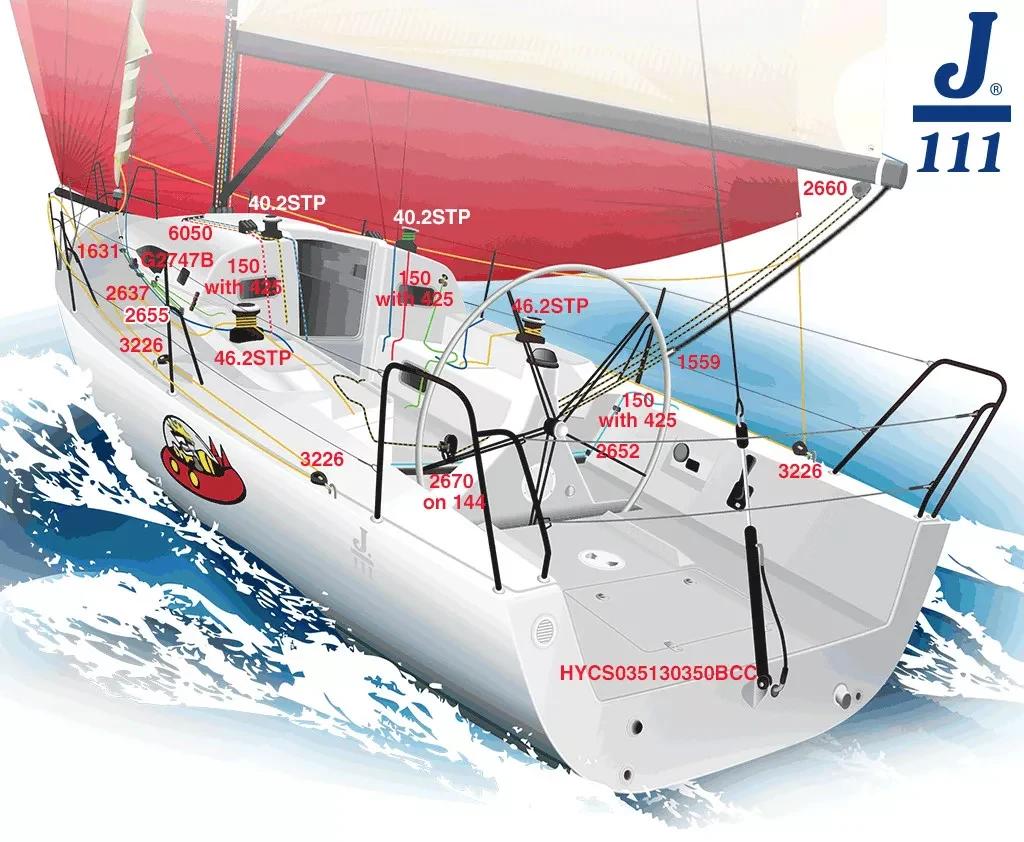

Harken hardware for the J/111, shown where each part goes on deck, with the class's rigging lines and Lion Sailing sails.
19 of 20 fittings priced, 1 by quote$8,054.25
Mainsheet
$583.80 2
2660 75mm Carbo Block 75 mm Carbo block at the boom end. Harken's parts list shows the 2600; its drawing labels this block 2660. x 1 $98.95List $111.80
x 1 $98.95List $111.80
5
$104.95List $118.90
6
144 Ball Bearing Swivel Mainsheet Cam Base Swivel cam base under the ratchet block. x 1 $180.95List $205.65
x 1 $180.95List $205.65
Backstay
$0.00 20
HYCS035130350BCC
HYCS035130350BCC Priced by quote Hydraulic backstay cylinder at the transom, 350 mm stroke. Priced by quote. x 1 Request a quote
x 1 Mast
$78.20 15
$78.20
Winches
$6,175.80 1112
40.2STP Performa 2 Speed Alum Self-Tailing Winch Secondary winch on the cabin top, 40 two-speed self-tailing. Harken's parts list shows the 46.2 here; its write-up puts the 40.2STP secondaries on the cabin top. x 2 $1,382.95List $1,975.00
x 2 $1,382.95List $1,975.00
19
46.2STP Performa 2 Speed Alum Self-Tailing Winch Primary winches in the cockpit, 46 two-speed self-tailing (a pair, per Harken's write-up). x 2 $1,704.95List $2,435.00
x 2 $1,704.95List $2,435.00
Other deck hardware
$1,216.45 1
1631 Pair/Single Midrange Traveler End Controls End controls for a 27 mm car track (pair). x 1 $332.95List $378.35
x 1 $332.95List $378.35
3416
3226 57mm Low Load Block 57 mm low-load block at the stern quarter; one each side. x 3 $211.95List $241.00
x 3 $211.95List $241.00
813
150 Cam-Matic Ball Bearing Cam Cleat Cam-Matic cleat with fairlead; one each side. x 2 $44.95List $50.80
x 2 $44.95List $50.80
914
$8.95List $9.65
10
2652 40mm Carbo Block with Spring and Eyestrap - Assembled 40 mm stand-up block on the cockpit floor. x 1 $41.95List $48.05
x 1 $41.95List $48.05
17
2637 40mm Carbo Block with Becket 40 mm single with becket; with the 40 mm fiddle it makes a small purchase. x 1 $44.95List $50.80
x 1 $44.95List $50.80
