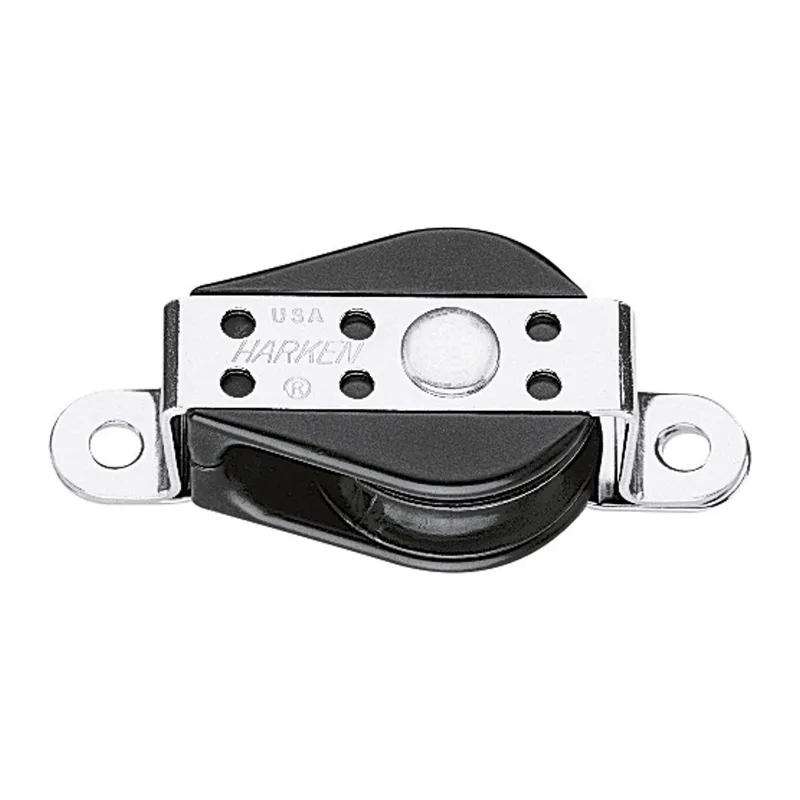

Harken 109
$32.95List $37.15 Bullet Cheek Block for Wire
The Harken 109 Bullet Cheek Block for Wire, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- 109
- UPC
- 097653003199
- Harken catalogue
- Page 36
- Family
- Small Boat and Midrange
Specifications
- Sheave diameter
- 29 mm1 1/8 in
- Length
- 73 mm2 7/8 in
- Weight
- 35 g1.25 oz
- Max line diameter
- 8 mm5/16 in
- Max working load
- 227 kg500 lb
- Breaking load
- 907 kg2000 lb
From the Harken 2026 catalogue.
CAD drawings
