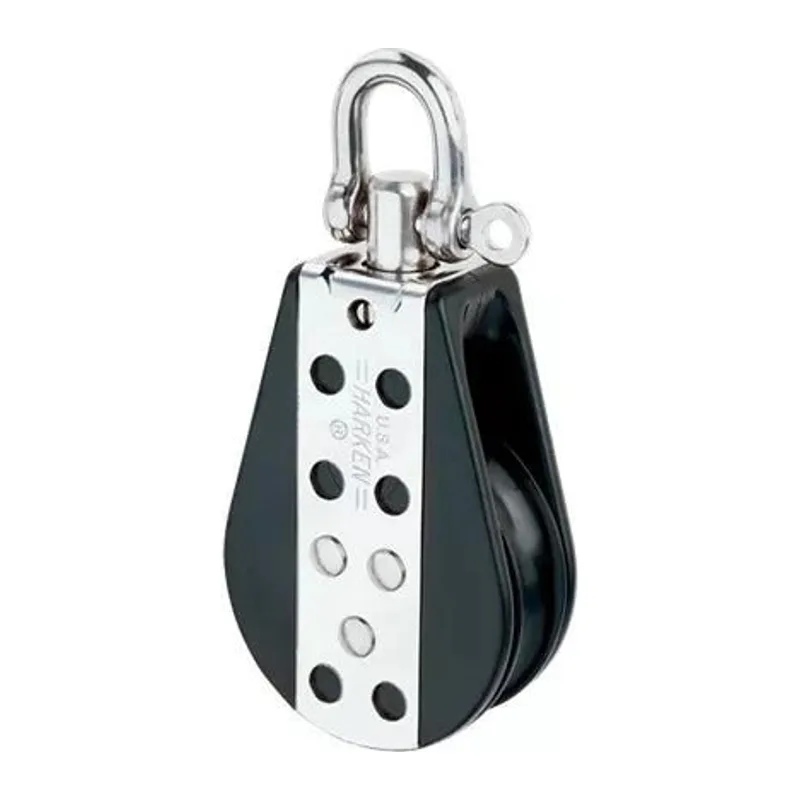

    Harken 1586 Hi-Load 3.00 Single Midrange Block
    Harken 1586

    Hi-Load 3.00 Single Midrange Block

    The Harken 1586 Hi-Load 3.00 Single Midrange Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $191.95List $217.95

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    1586
    UPC
    097653004882
    Harken catalogue
    Page 41

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    76 mm3 in
    Length
    156 mm6 1/8 in
    Weight
    367 g13 oz
    Shackle pin diameter
    8 mm5/16 in
    Max line diameter
    14 mm9/16 in
    Max working load
    1043 kg2300 lb
    Breaking load
    2268 kg5000 lb

    From the Harken 2026 catalogue.

    Goes with 1586

    Harken 001 2.25" Single Block
    001 2.25" Single Block $64.95List $74.10 Ships in about 3 days
    Harken 046 1.75" Dinghy Through Deck Block with Coverplate
    046 1.75" Dinghy Through Deck Block with Coverplate $65.95List $75.00 Ships in about 3 days
    Harken 086 Triple Bullet Block
    086 Triple Bullet Block $76.95List $87.35 Ships in about 3 days
    Harken 047 2.25" Through Deck Block with Coverplate
    047 2.25" Through Deck Block with Coverplate $77.95List $88.20 Ships in about 3 days
