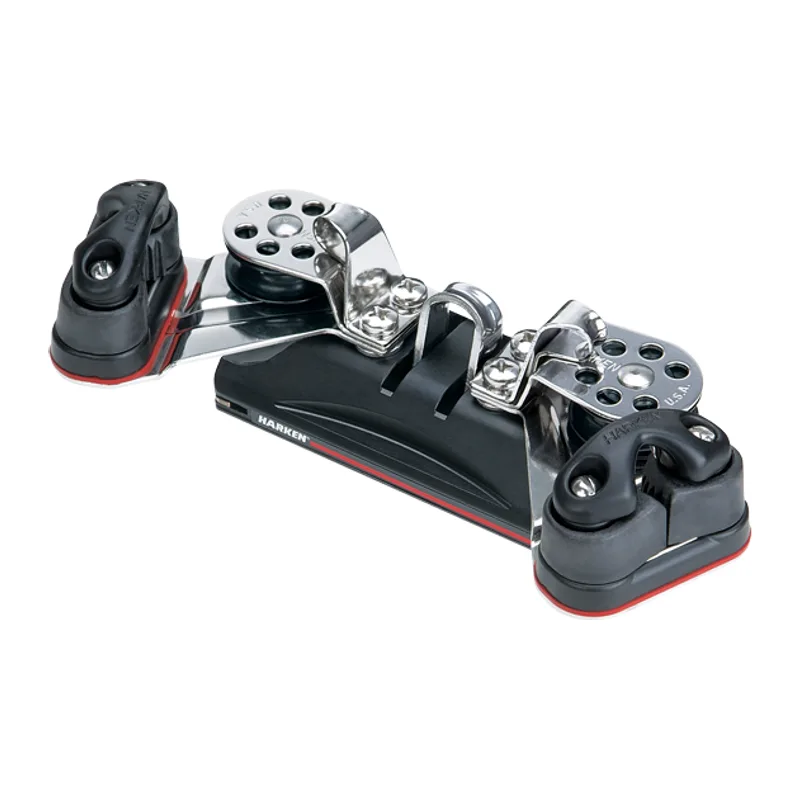

    Harken 1629 Long Midrange CB Traveler Car with Cams
    Harken 1629

    Long Midrange CB Traveler Car with Cams

    The Harken 1629 Long Midrange CB Traveler Car with Cams, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $590.95List $671.25

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    1629
    UPC
    097653134756
    Harken catalogue
    Page 130

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Length
    232 mm9 1/8 in
    Weight
    771 g27.2 oz
    Max line diameter
    10 mm3/8 in
    Max working load
    1043 kg2300 lb
    Breaking load
    2268 kg5000 lb

    From the Harken 2026 catalogue.

    CAD drawings
    Side view (DWG) Top view (DWG)

    Goes with 1629

    Harken 174 Smallboat Hi-beam End Stops (Pair)
    174 Smallboat Hi-beam End Stops (Pair) $13.95List $15.55 Ships in about 3 days
    Harken 173 Smallboat Low-beam End Stops (Pair)
    173 Smallboat Low-beam End Stops (Pair) $10.95List $12.45 Ships in about 3 days
    Harken 264 Small boat Heavy Duty Hi-Beam End Stops (Pair)
    264 Small boat Heavy Duty Hi-Beam End Stops (Pair) $51.95List $58.70 Ships in about 3 days
    Harken 263 Small boat Heavy Duty Low Profile End Stops (Pair)
    263 Small boat Heavy Duty Low Profile End Stops (Pair) $38.95List $44.25 Ships in about 3 days
