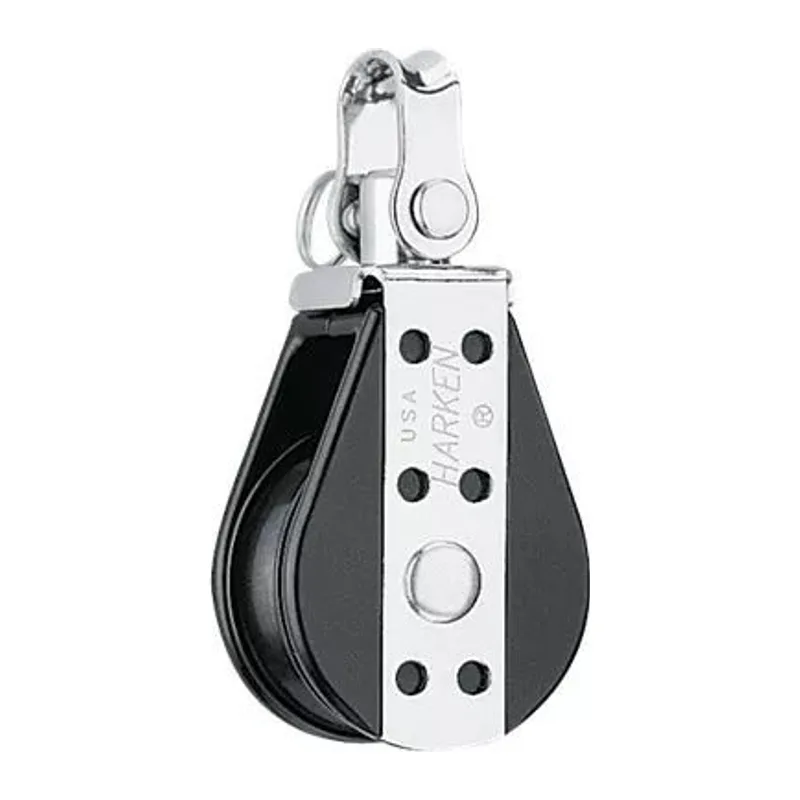

    Harken 183 Single Bullet Swivel Block for Wire
    Harken 183

    Single Bullet Swivel Block for Wire

    The Harken 183 Single Bullet Swivel Block for Wire, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $41.95List $48.00

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    183
    UPC
    097653006589
    Harken catalogue
    Page 36

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    29 mm1 1/8 in
    Length
    70 mm2 3/4 in
    Weight
    43 g1.5 oz
    Shackle pin diameter
    5 mm3/16 in
    Max line diameter
    8 mm5/16 in
    Max working load
    227 kg500 lb
    Breaking load
    907 kg2000 lb

    From the Harken 2026 catalogue.

    CAD drawings
    End view (DWG) Side view (DWG)

    Goes with 183

    Harken 001 2.25" Single Block
    001 2.25" Single Block $64.95List $74.10 Ships in about 3 days
    Harken 046 1.75" Dinghy Through Deck Block with Coverplate
    046 1.75" Dinghy Through Deck Block with Coverplate $65.95List $75.00 Ships in about 3 days
    Harken 086 Triple Bullet Block
    086 Triple Bullet Block $76.95List $87.35 Ships in about 3 days
    Harken 047 2.25" Through Deck Block with Coverplate
    047 2.25" Through Deck Block with Coverplate $77.95List $88.20 Ships in about 3 days
