Harken 197

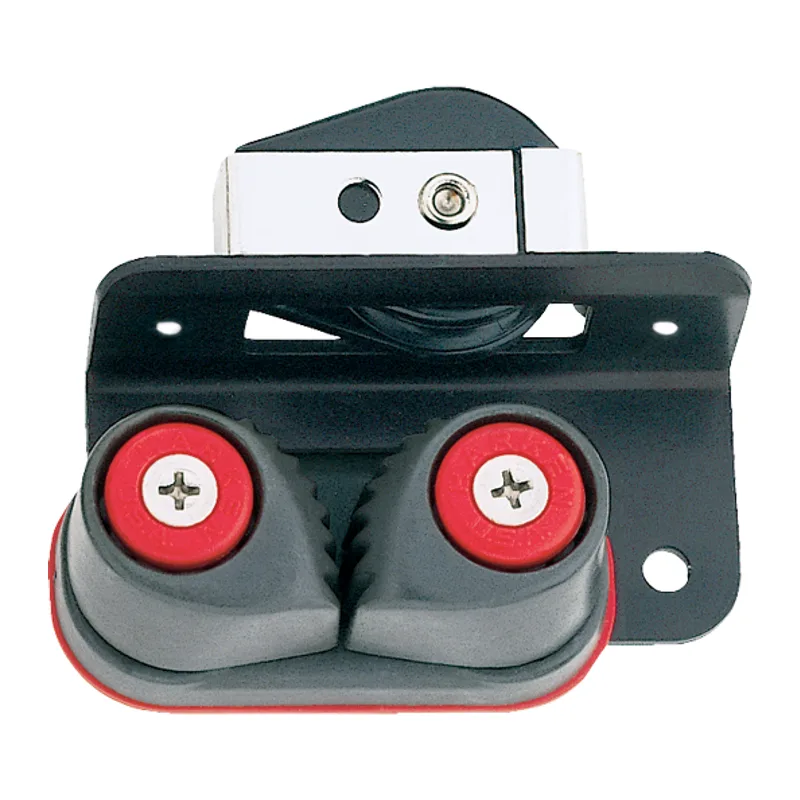

$119.95List $135.95 Bullet Exit Block with Cam and Angle Bracket
The Harken 197 Bullet Exit Block with Cam and Angle Bracket, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- 197
- UPC
- 097653269199
- Harken catalogue
- Page 37
- Family
- Small Boat and Midrange
Specifications
- Sheave diameter
- 29 mm1 1/8 in
- Length
- 76 mm3 in
- Weight
- 128 g4.5 oz
- Max line diameter
- 8 mm5/16 in
- Max working load
- 136 kg300 lb
- Breaking load
- 907 kg2000 lb
From the Harken 2026 catalogue.
CAD drawings
