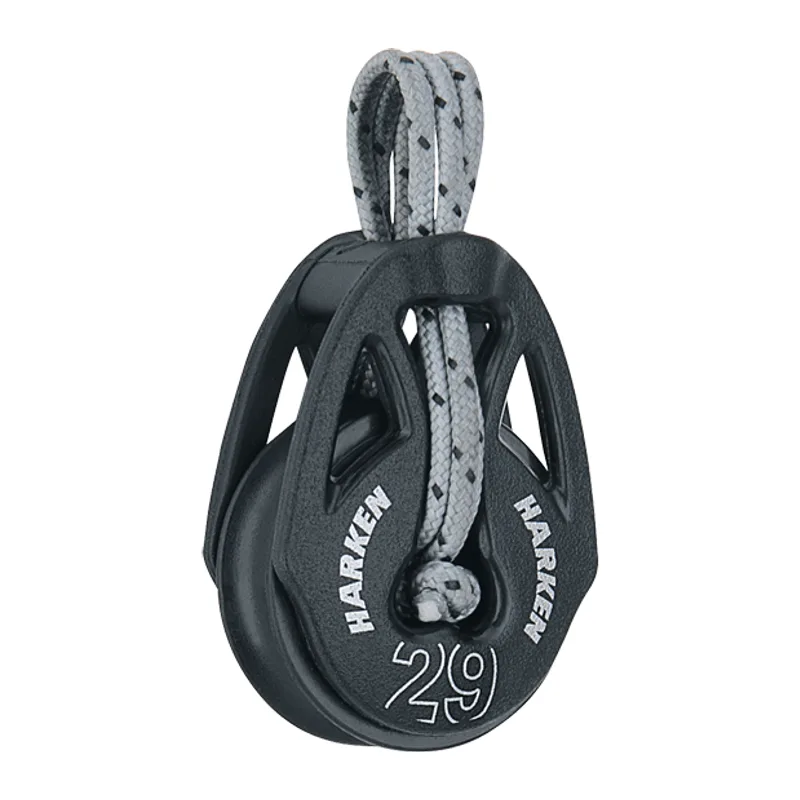

    Harken 2146 29mm Carbo T2 Block
    Harken 2146

    29mm Carbo T2 Block

    The Harken 2146 29mm Carbo T2 Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    Used on: J/70 backstay, J/70 mast, Opti mast

    $29.95List $33.30

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2146
    UPC
    097653238140
    Harken catalogue
    Page 19

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    29 mm1 1/8 in
    Length
    43 mm1 11/16 in
    Weight
    12 g0.4 oz
    Max line diameter
    8 mm5/16 in
    Max working load
    150 kg330 lb
    Breaking load
    454 kg1000 lb

    From the Harken 2026 catalogue.

    CAD drawings
    Front view (DWG) Rear view (DWG) Top view (DWG)
