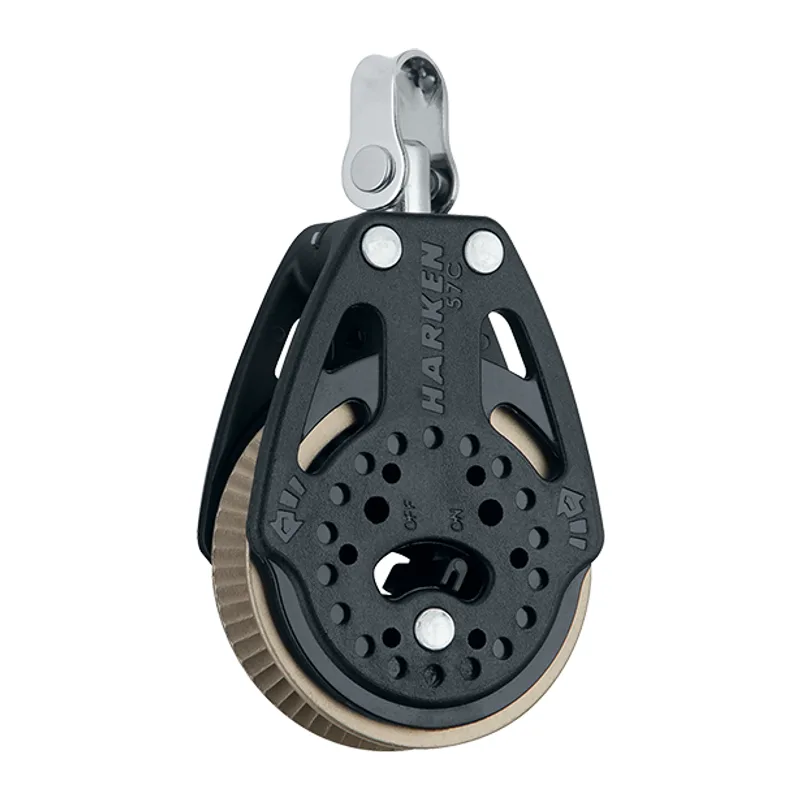

    Harken 2166 57mm Carbo Ratchet Block - 1.5 x Grip
    Harken 2166

    57mm Carbo Ratchet Block - 1.5 x Grip

    The Harken 2166 57mm Carbo Ratchet Block - 1.5 x Grip, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $90.95List $103.05

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2166
    UPC
    097653284246
    Harken catalogue
    Page 25

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    57 mm2 1/4 in
    Length
    103 mm4 1/16 in
    Weight
    85 g3 oz
    Shackle pin diameter
    5 mm3/16 in
    Max line diameter
    10 mm3/8 in
    Max working load
    227 kg500 lb
    Breaking load
    907 kg2000 lb

    From the Harken 2026 catalogue.
