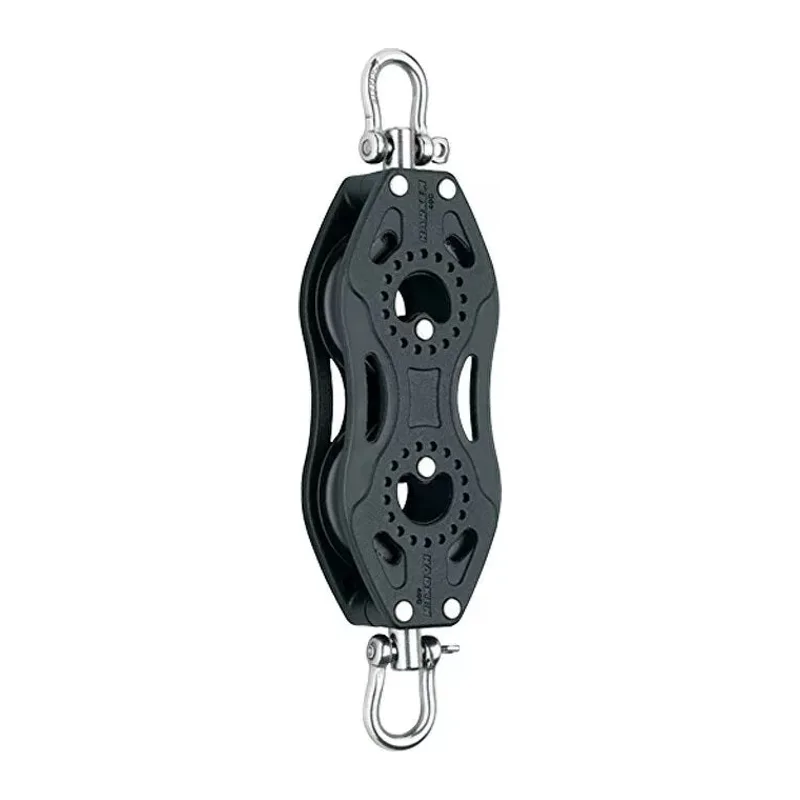

    Harken 2184 40mm Carbo Double Ended Swivel Block
    Harken 2184

    40mm Carbo Double Ended Swivel Block

    The Harken 2184 40mm Carbo Double Ended Swivel Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $60.95List $69.00

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2184
    UPC
    097653297000
    Harken catalogue
    Page 22

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    40 mm1 9/16 in
    Length
    165 mm6 1/2 in
    Weight
    89 g3.1 oz
    Shackle pin diameter
    4 mm5/32 in
    Max line diameter
    10 mm3/8 in
    Max working load
    220 kg485 lb
    Breaking load
    735 kg1620 lb

    From the Harken 2026 catalogue.
