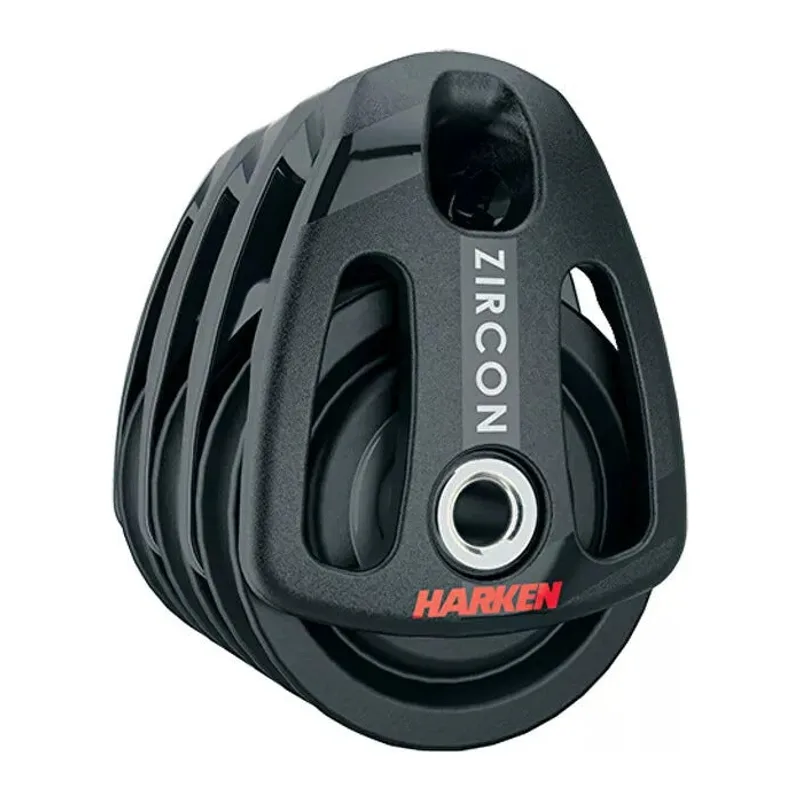

    Harken 2194 40mm Zircon Triple Block
    Harken 2194

    40mm Zircon Triple Block

    The Harken 2194 40mm Zircon Triple Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $136.95List $155.05

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2194
    UPC
    097653297598
    Harken catalogue
    Page 16

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    40 mm1 9/16 in
    Length
    60 mm2 3/8 in
    Weight
    66.5 g2.35 oz
    Max line diameter
    8 mm5/16 in
    Max working load
    345 kg750 lb
    Breaking load
    1020 kg2250 lb

    From the Harken 2026 catalogue.
