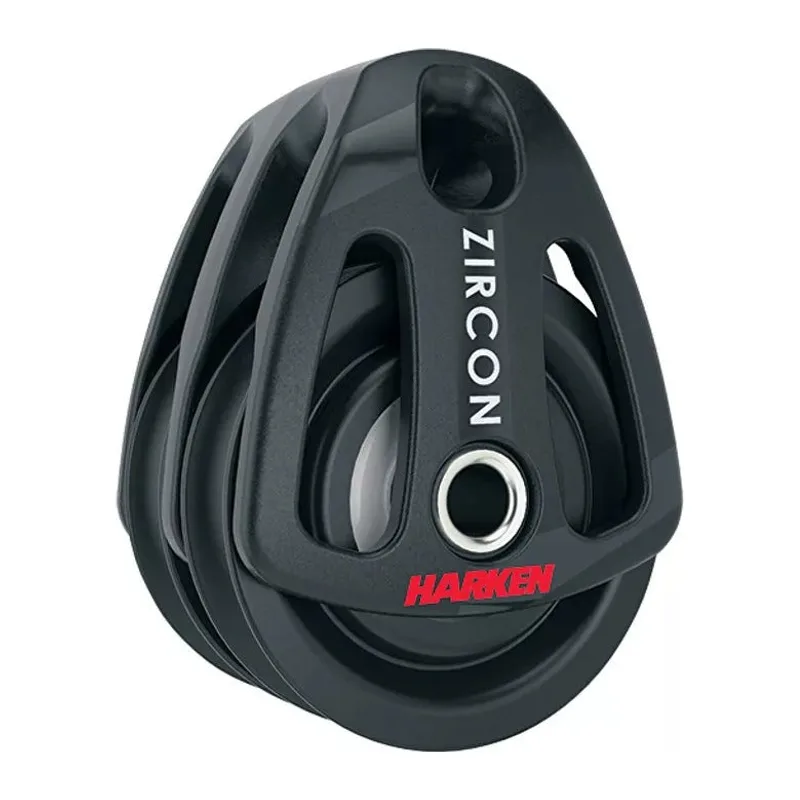

    Harken 2197 57mm Double Zircon Block
    Harken 2197

    57mm Double Zircon Block

    The Harken 2197 57mm Double Zircon Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $122.95List $140.10

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2197
    UPC
    097653295754
    Harken catalogue
    Page 16

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    57 mm2 1/4 in
    Length
    79 mm3 1/8 in
    Weight
    86.4 g3.05 oz
    Max line diameter
    10 mm3/8 in
    Max working load
    300 kg660 lb
    Breaking load
    900 kg1980 lb

    From the Harken 2026 catalogue.

    Goes with 2197

    Harken 001 2.25" Single Block
    001 2.25" Single Block $64.95List $74.10 Ships in about 3 days
    Harken 046 1.75" Dinghy Through Deck Block with Coverplate
    046 1.75" Dinghy Through Deck Block with Coverplate $65.95List $75.00 Ships in about 3 days
    Harken 086 Triple Bullet Block
    086 Triple Bullet Block $76.95List $87.35 Ships in about 3 days
    Harken 047 2.25" Through Deck Block with Coverplate
    047 2.25" Through Deck Block with Coverplate $77.95List $88.20 Ships in about 3 days
