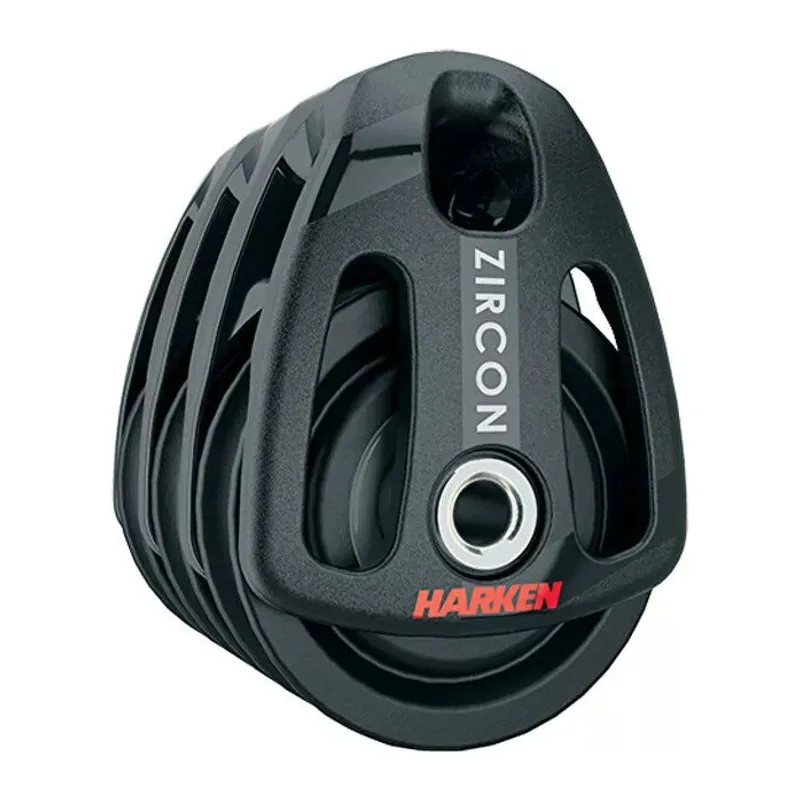

    Harken 2199 57mm Zircon Triple Block
    Harken 2199

    57mm Zircon Triple Block

    The Harken 2199 57mm Zircon Triple Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $183.95List $209.10

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2199
    UPC
    097653297604
    Harken catalogue
    Page 16

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    57 mm2 1/4 in
    Length
    79 mm3 1/8 in
    Weight
    128 g4.52 oz
    Max line diameter
    10 mm3/8 in
    Max working load
    450 kg990 lb
    Breaking load
    1350 kg2970 lb

    From the Harken 2026 catalogue.
