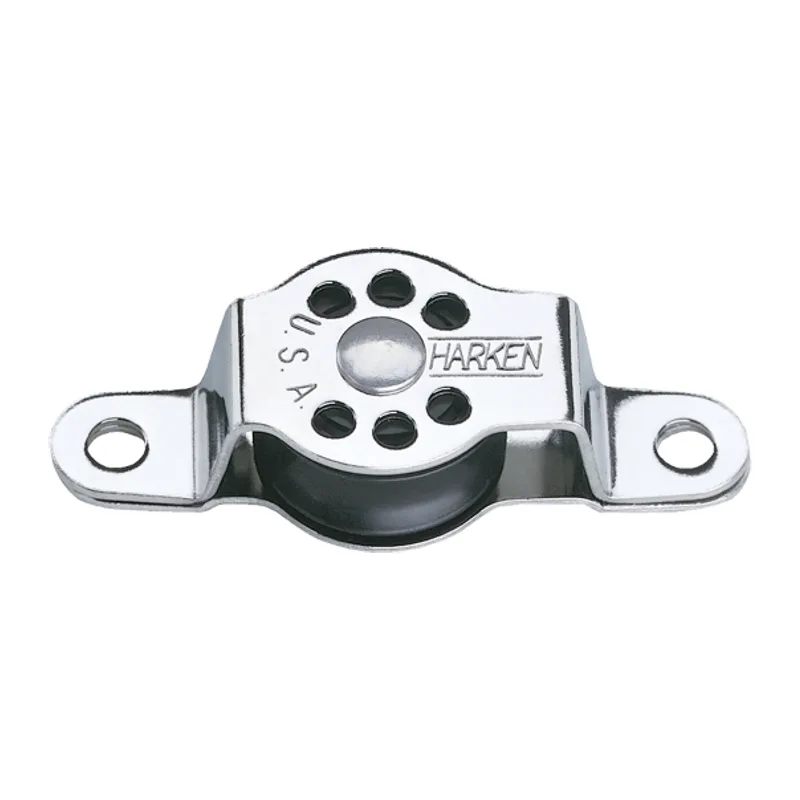

Harken 233 Micro Cheek Block

Harken 233

Micro Cheek Block

The Harken 233 Micro Cheek Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

$19.95List $23.05

Ships in about 3 business days, plus transit.

Returns within 30 days of delivery. Returns and exchanges

Compare

Part number: 233
UPC: 097653008477
Harken catalogue: Page 34
Harken 2026 catalogue, page
Open the whole catalogue (PDF)
Family: Small Boat and Midrange

Specifications

Sheave diameter: 22 mm7/8 in
Length: 64 mm2 1/2 in
Weight: 21 g0.75 oz
Max line diameter: 6 mm1/4 in
Max working load: 91 kg200 lb
Breaking load: 544 kg1200 lb

From the Harken 2026 catalogue.

CAD drawings

End view (DWG) Front view (DWG) Rear view (DWG) Top view (DWG)
