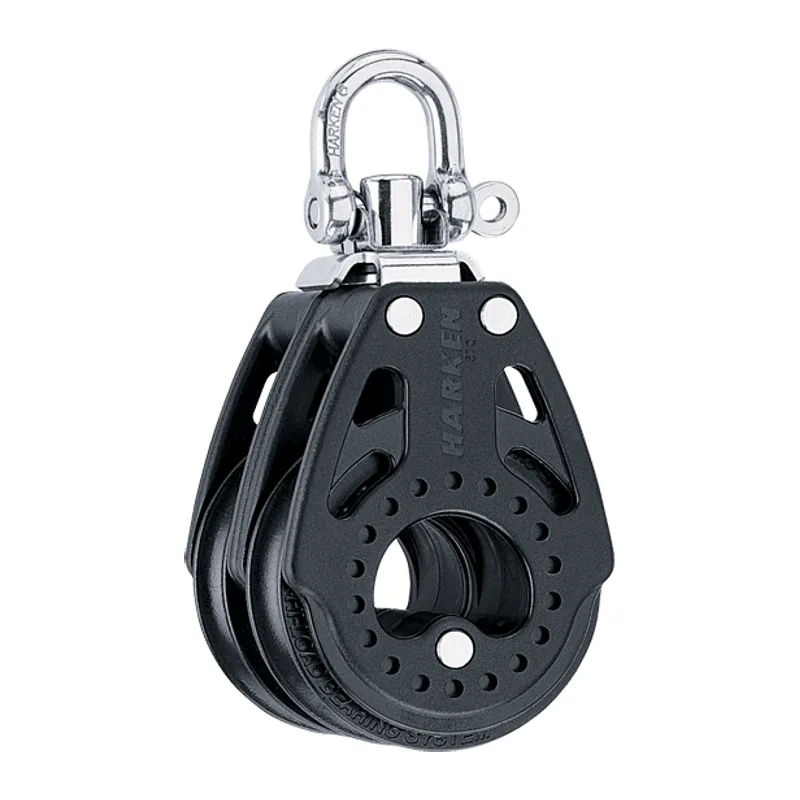

Harken 2602 57mm Double Carbo Block

Harken 2602

57mm Double Carbo Block

The Harken 2602 57mm Double Carbo Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

$118.95List $135.10

Ships in about 3 business days, plus transit.

Returns within 30 days of delivery. Returns and exchanges

Compare

Part number: 2602
UPC: 097653076797
Harken catalogue: Page 23
Harken 2026 catalogue, page
Open the whole catalogue (PDF)
Family: Small Boat and Midrange

Specifications

Sheave diameter: 57 mm2 1/4 in
Length: 121 mm4 3/4 in
Weight: 178 g6.3 oz
Shackle pin diameter: 6 mm1/4 in
Max line diameter: 10 mm3/8 in
Max working load: 720 kg1584 lb
Breaking load: 1500 kg3300 lb

From the Harken 2026 catalogue.

CAD drawings

End view (DWG) Side view (DWG)
