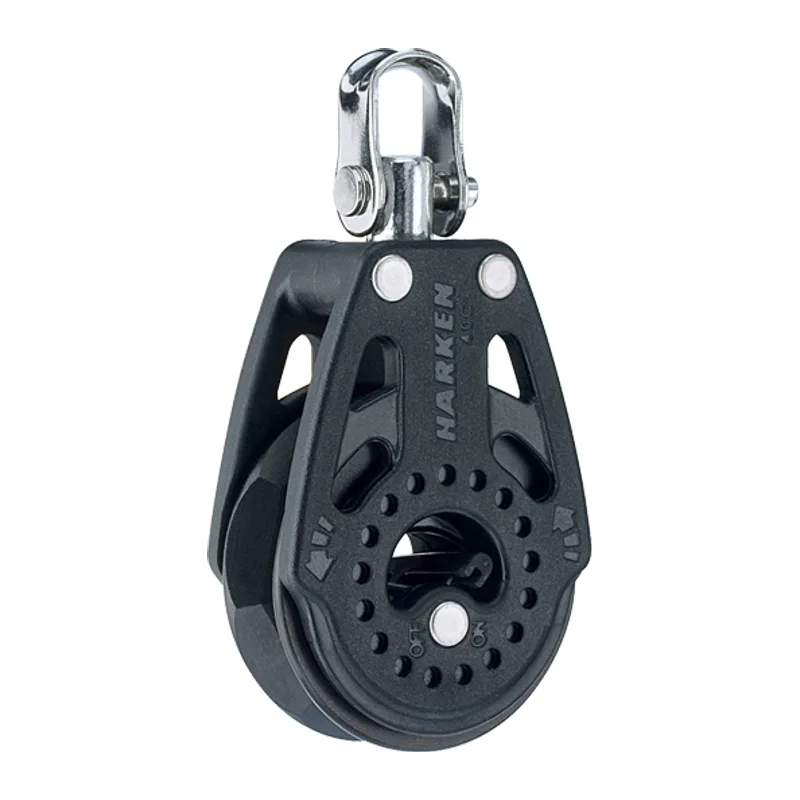

Harken 2608 40mm Carbo Ratchet Block

Harken 2608

40mm Carbo Ratchet Block

The Harken 2608 40mm Carbo Ratchet Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

$72.95List $83.10

Ships in about 3 business days, plus transit.

Returns within 30 days of delivery. Returns and exchanges

Compare

Part number: 2608
UPC: 097653084174
Harken catalogue: Page 26
Harken 2026 catalogue, page
Open the whole catalogue (PDF)
Family: Small Boat and Midrange

Specifications

Sheave diameter: 40 mm1 9/16 in
Length: 86 mm3 3/8 in
Weight: 49 g1.7 oz
Shackle pin diameter: 4 mm5/32 in
Max line diameter: 10 mm3/8 in
Max working load: 136 kg300 lb
Breaking load: 454 kg1000 lb

From the Harken 2026 catalogue.

CAD drawings

End view (DWG) Side view (DWG)
