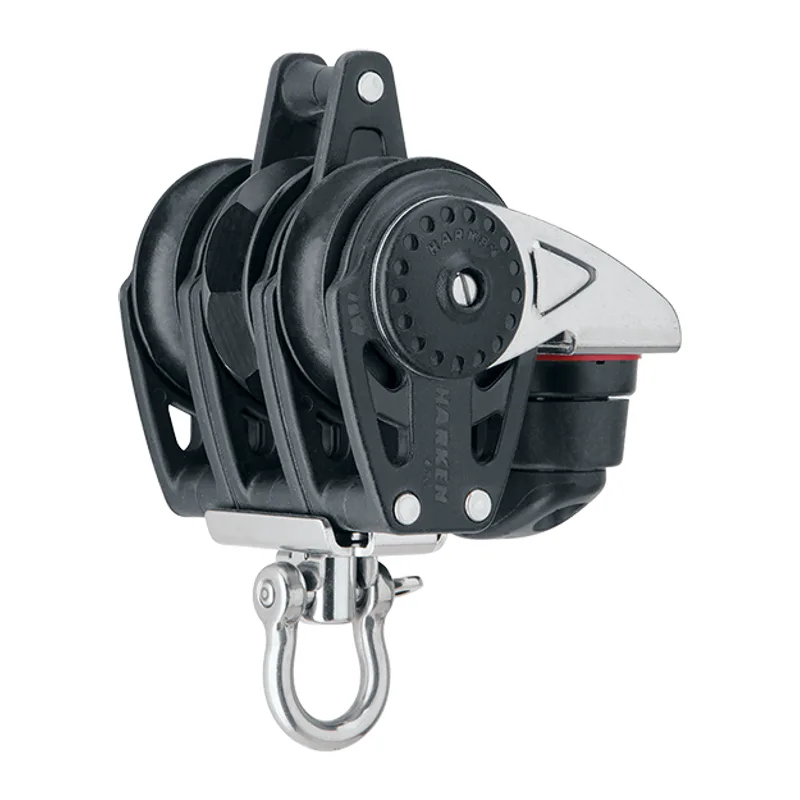

    Harken 2613 40mm Triple Carbo Ratchet with Cam Cleat & Becket
    Harken 2613

    40mm Triple Carbo Ratchet with Cam Cleat & Becket

    The Harken 2613 40mm Triple Carbo Ratchet with Cam Cleat & Becket, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $245.95List $279.40

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2613
    UPC
    097653134251
    Harken catalogue
    Page 27

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    40 mm1 9/16 in
    Length
    110 mm4 5/16 in
    Weight
    245 g8.6 oz
    Shackle pin diameter
    6 mm1/4 in
    Max line diameter
    5 mm3/16 in
    Max working load
    408 kg900 lb
    Breaking load
    816 kg1800 lb

    From the Harken 2026 catalogue.

    CAD drawings
    End view (DWG) Side view (DWG)

    Goes with 2613

    Harken 150 Cam-Matic Ball Bearing Cam Cleat
    150 Cam-Matic Ball Bearing Cam Cleat $44.95List $50.80 Ships in about 3 days
    Harken 145 Cam-Matic Wedge Kit
    145 Cam-Matic Wedge Kit $7.95List $8.65 Ships in about 3 days
    Harken 230 Triple Micro Block with Cam Cleat
    230 Triple Micro Block with Cam Cleat $117.95List $133.50 Ships in about 3 days
    Harken 193 2.25" Little Hexa-Cat Base with Adjustable Cam Cleat
    193 2.25" Little Hexa-Cat Base with Adjustable Cam Cleat $265.95List $302.50 Ships in about 3 days
