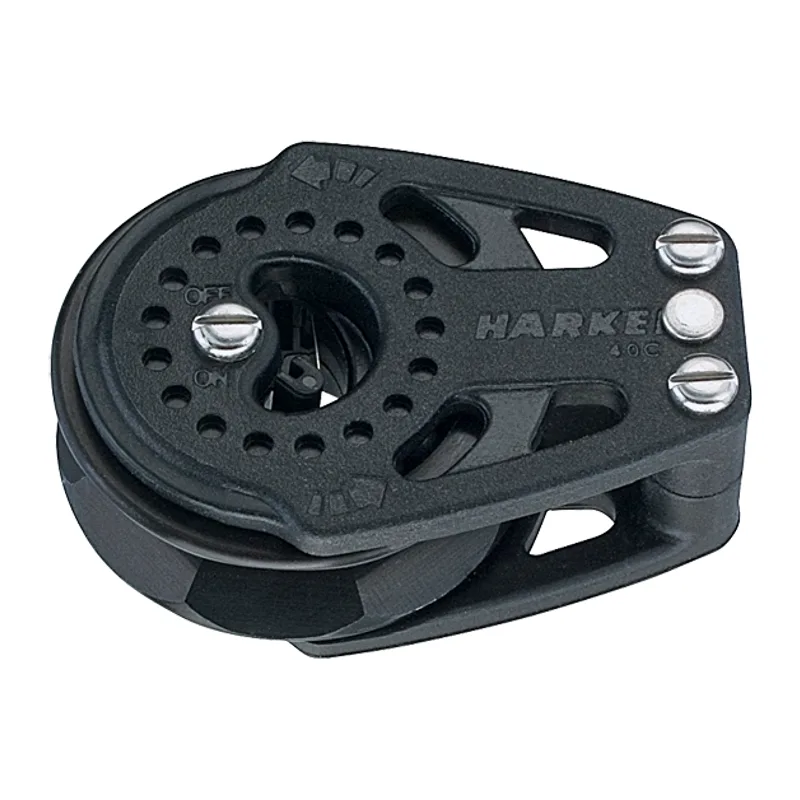

    Harken 2614 40mm Carbo Ratchet Cheek Block
    Harken 2614

    40mm Carbo Ratchet Cheek Block

    The Harken 2614 40mm Carbo Ratchet Cheek Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $80.95List $91.70

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2614
    UPC
    097653133384
    Harken catalogue
    Page 26

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    40 mm1 9/16 in
    Length
    70 mm2 3/4 in
    Weight
    44 g1.6 oz
    Max line diameter
    10 mm3/8 in
    Max working load
    136 kg300 lb
    Breaking load
    454 kg1000 lb

    From the Harken 2026 catalogue.

    CAD drawings
    Side view (DWG) Top view (DWG)
