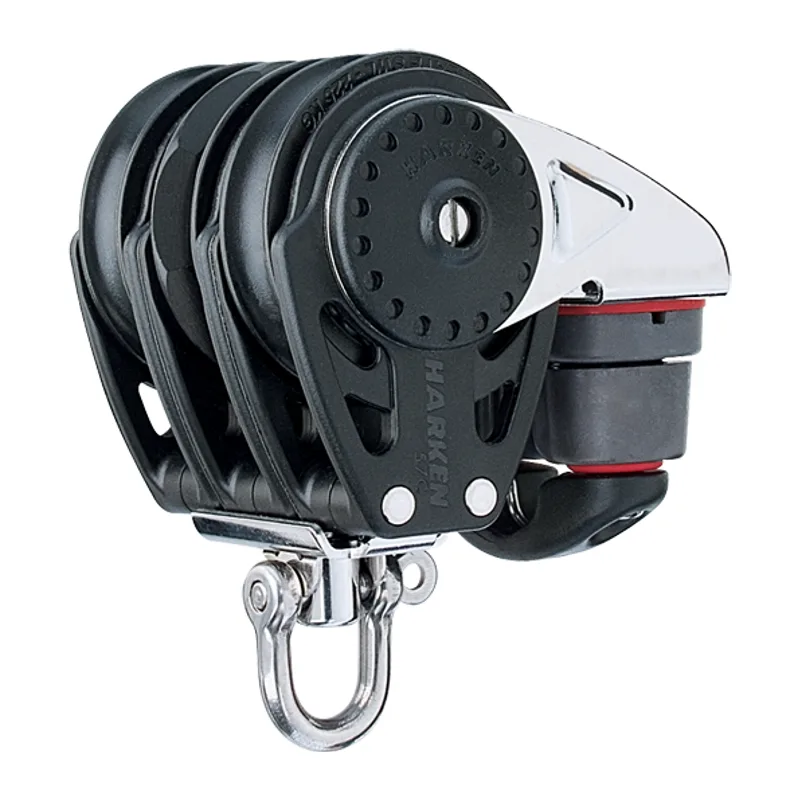

    Harken 2629 57mm Triple Carbo Ratchamatic with Cam Cleat
    Harken 2629

    57mm Triple Carbo Ratchamatic with Cam Cleat

    The Harken 2629 57mm Triple Carbo Ratchamatic with Cam Cleat, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $347.95List $395.30

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2629
    UPC
    097653113355
    Harken catalogue
    Page 29

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    57 mm2 1/4 in
    Length
    103 mm4 1/16 in
    Weight
    421 g14.9 oz
    Shackle pin diameter
    6 mm1/4 in
    Max line diameter
    10 mm3/8 in
    Max working load
    680 kg1500 lb
    Breaking load
    1700 kg3750 lb

    From the Harken 2026 catalogue.

    CAD drawings
    End view (DWG) Side view (DWG)
