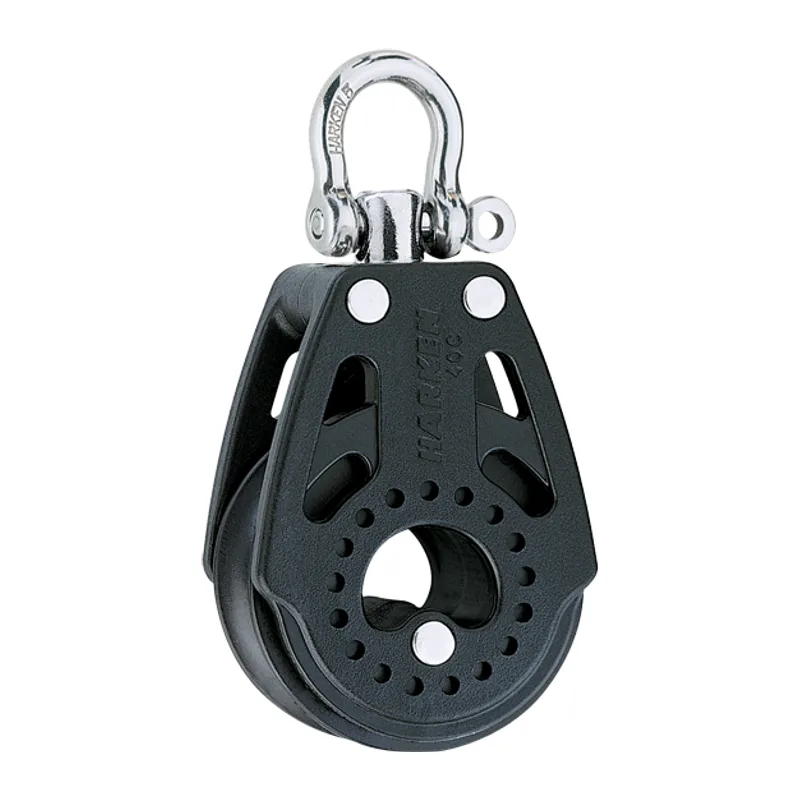

Harken 2636 40mm Carbo Block

Harken 2636

40mm Carbo Block

The Harken 2636 40mm Carbo Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

Used on: J/88 other deck hardware

$38.95List $43.65

Ships in about 3 business days, plus transit.

Returns within 30 days of delivery. Returns and exchanges

Compare

Part number: 2636
UPC: 097653077176
Harken catalogue: Page 21
Harken 2026 catalogue, page
Open the whole catalogue (PDF)
Family: Small Boat and Midrange

Specifications

Sheave diameter: 40 mm1 9/16 in
Length: 86 mm3 3/8 in
Weight: 44 g1.6 oz
Shackle pin diameter: 4 mm5/32 in
Max line diameter: 10 mm3/8 in
Max working load: 220 kg485 lb
Breaking load: 735 kg1620 lb

From the Harken 2026 catalogue.

CAD drawings

End view (DWG) Side view (DWG)
