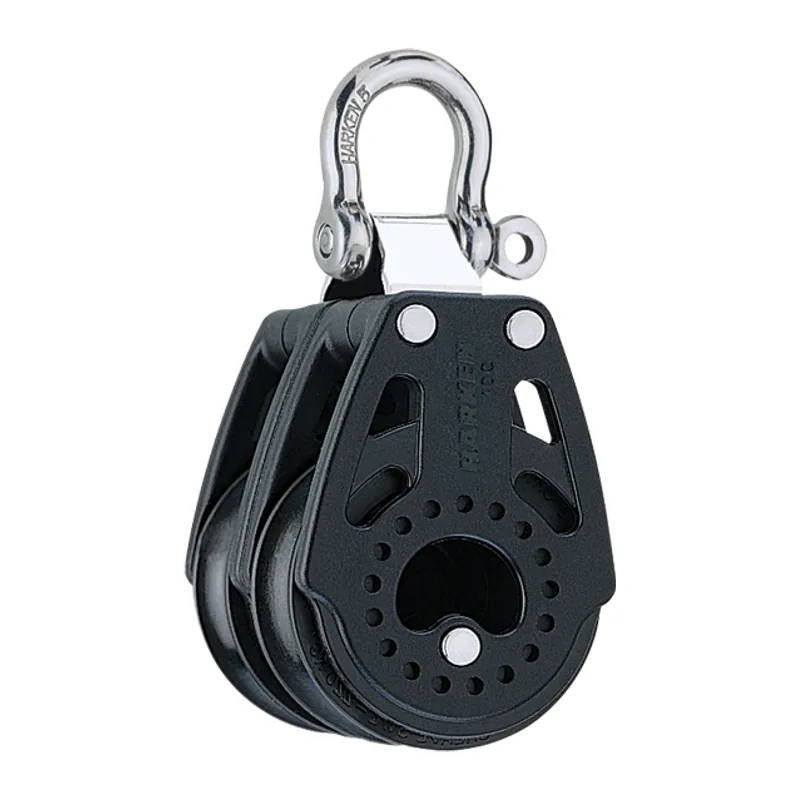

Harken 2642 40mm Carbo Fixed Double Block

Harken 2642

40mm Carbo Fixed Double Block

The Harken 2642 40mm Carbo Fixed Double Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

$72.95List $82.45

Ships in about 3 business days, plus transit.

Returns within 30 days of delivery. Returns and exchanges

Compare

Part number: 2642
UPC: 097653077596
Harken catalogue: Page 22
Harken 2026 catalogue, page
Open the whole catalogue (PDF)
Family: Small Boat and Midrange

Specifications

Sheave diameter: 40 mm1 9/16 in
Length: 89 mm3 1/2 in
Weight: 80 g2.8 oz
Shackle pin diameter: 5 mm3/16 in
Max line diameter: 10 mm3/8 in
Max working load: 440 kg970 lb
Breaking load: 1080 kg2380 lb

From the Harken 2026 catalogue.

CAD drawings

End view (DWG) Side view (DWG)
