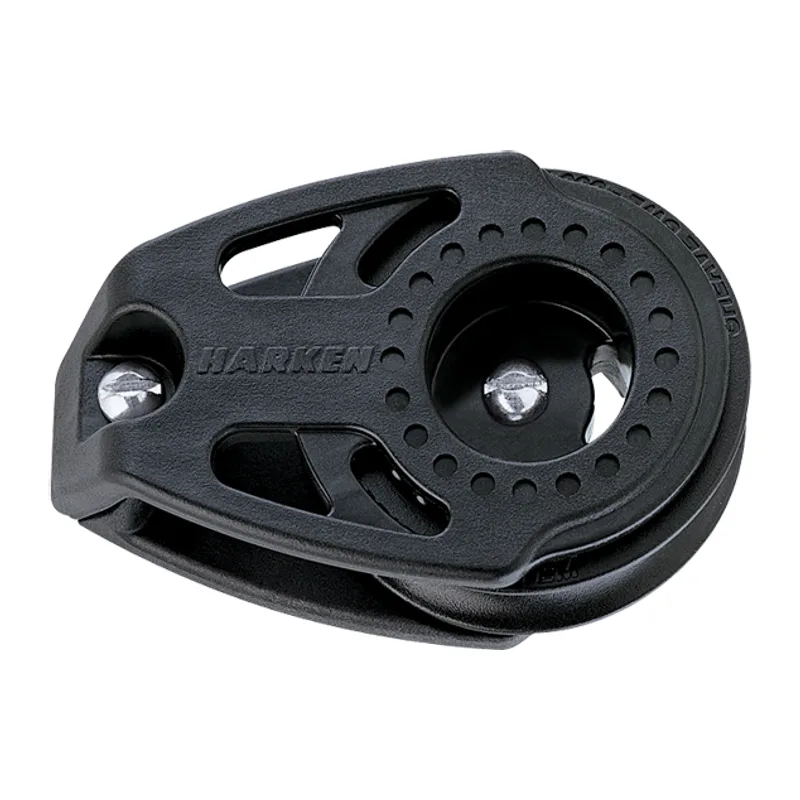

    Harken 2644 40mm Carbo Cheek Block
    Harken 2644

    40mm Carbo Cheek Block

    The Harken 2644 40mm Carbo Cheek Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $36.95List $41.95

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2644
    UPC
    097653084167
    Harken catalogue
    Page 21

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    40 mm1 9/16 in
    Length
    70 mm2 3/4 in
    Weight
    34 g1.2 oz
    Max line diameter
    10 mm3/8 in
    Max working load
    220 kg485 lb
    Breaking load
    735 kg1620 lb

    From the Harken 2026 catalogue.

    CAD drawings
    Side view (DWG) Top view (DWG)
