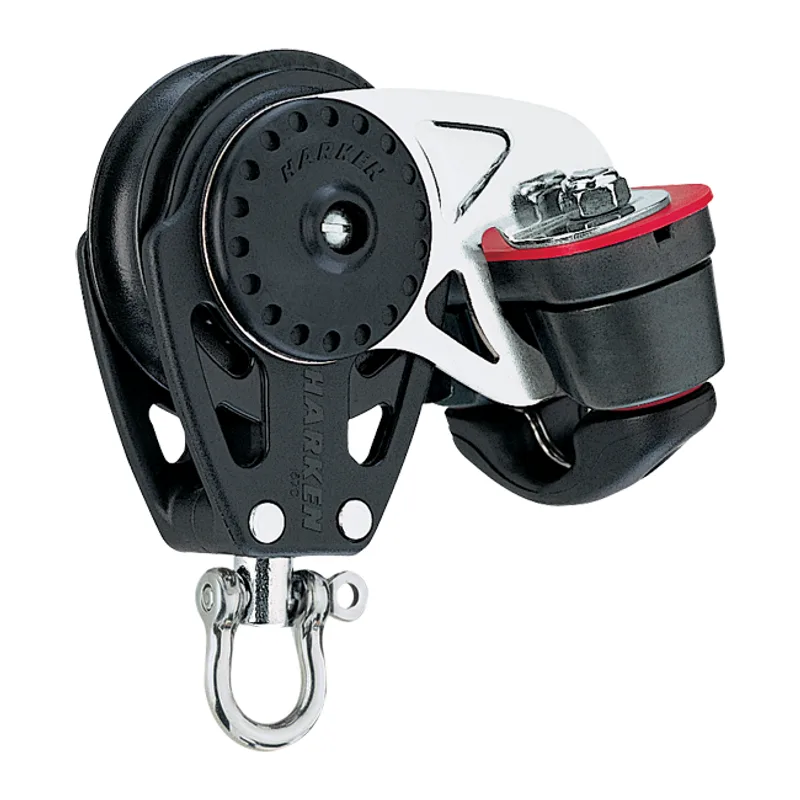

Harken 2645 40mm Carbo Block with Cam Cleat

Harken 2645

40mm Carbo Block with Cam Cleat

The Harken 2645 40mm Carbo Block with Cam Cleat, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

$124.95List $142.30

Ships in about 3 business days, plus transit.

Returns within 30 days of delivery. Returns and exchanges

Compare

Part number: 2645
UPC: 097653084181
Harken catalogue: Page 21
Harken 2026 catalogue, page
Open the whole catalogue (PDF)
Family: Small Boat and Midrange

Specifications

Sheave diameter: 40 mm1 9/16 in
Length: 86 mm3 3/8 in
Weight: 119 g4.2 oz
Shackle pin diameter: 4 mm5/32 in
Max line diameter: 6 mm1/4 in
Max working load: 68 kg150 lb
Breaking load: 136 kg300 lb

From the Harken 2026 catalogue.

CAD drawings

End view (DWG) Side view (DWG)
