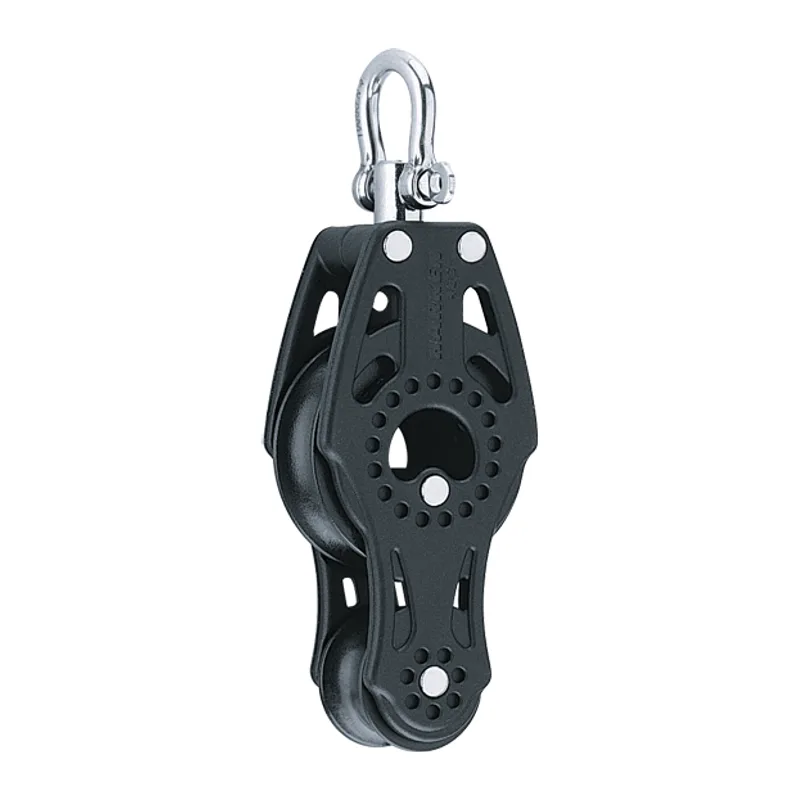

    Harken 2655 40mm Carbo Fiddle
    Harken 2655

    40mm Carbo Fiddle

    The Harken 2655 40mm Carbo Fiddle, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $52.95List $59.75

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2655
    UPC
    097653100713
    Harken catalogue
    Page 30

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    40 mm1 9/16 in
    Length
    115 mm4 1/2 in
    Weight
    51 g1.8 oz
    Shackle pin diameter
    4 mm5/32 in
    Max line diameter
    10 mm3/8 in
    Max working load
    220 kg485 lb
    Breaking load
    735 kg1620 lb

    From the Harken 2026 catalogue.

    CAD drawings
    End view (DWG) Side view (DWG)

    Goes with 2655

    Harken 086 Triple Bullet Block
    086 Triple Bullet Block $76.95List $87.35 Ships in about 3 days
    Harken 077 DN Iceboat Hexaratchet Steer Post Adapter
    077 DN Iceboat Hexaratchet Steer Post Adapter $69.95List $79.20 Ships in about 3 days
    Harken 087 Triple Bullet with Becket
    087 Triple Bullet with Becket $80.95List $91.95 Ships in about 3 days
    Harken 167 Single Bullet Swivel Block with Becket
    167 Single Bullet Swivel Block with Becket $39.95List $45.40 Ships in about 3 days
