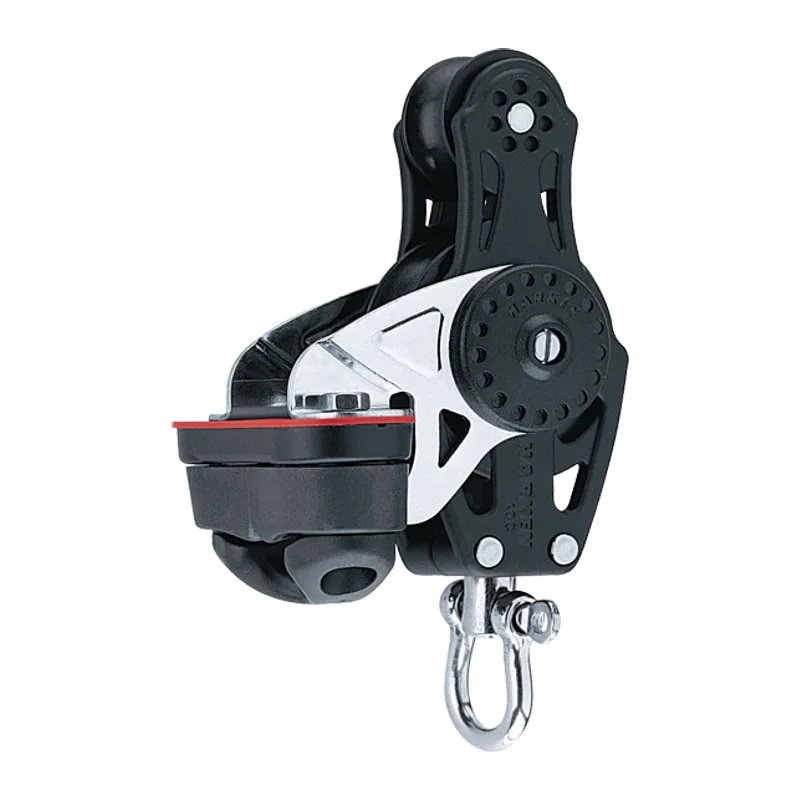

    Harken 2657 40mm Carbo Fiddle with Cam Cleat
    Harken 2657

    40mm Carbo Fiddle with Cam Cleat

    The Harken 2657 40mm Carbo Fiddle with Cam Cleat, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $139.95List $158.35

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2657
    UPC
    097653104476
    Harken catalogue
    Page 30

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    40 mm1 9/16 in
    Length
    115 mm4 1/2 in
    Weight
    125 g4.4 oz
    Shackle pin diameter
    4 mm5/32 in
    Max line diameter
    6 mm1/4 in
    Max working load
    204 kg450 lb
    Breaking load
    680 kg1500 lb

    From the Harken 2026 catalogue.

    CAD drawings
    End view (DWG) Side view (DWG)
