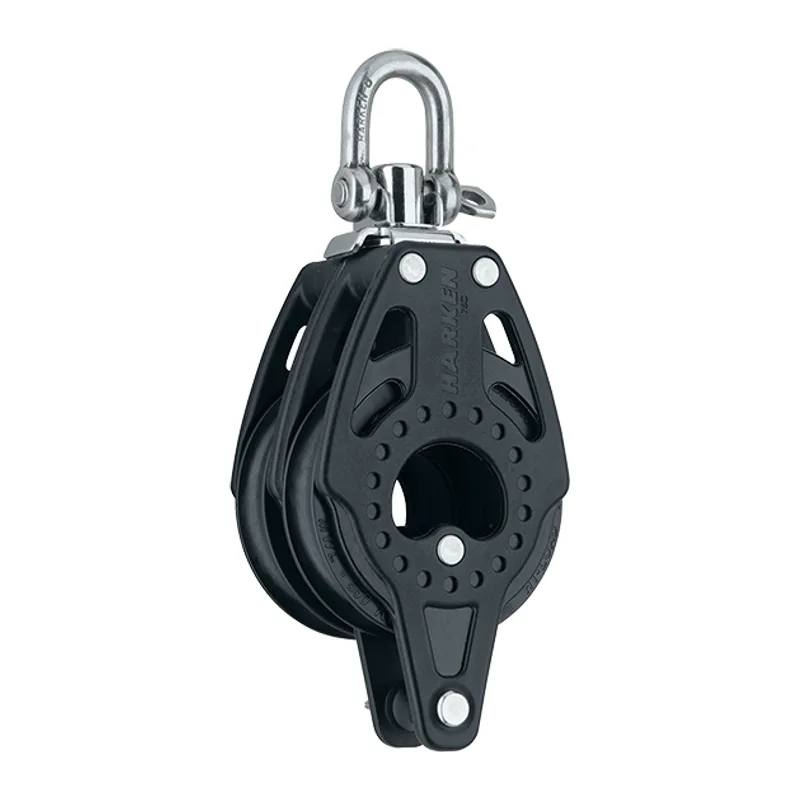

    Harken 2663 75mm Double Carbo Block with Becket
    Harken 2663

    75mm Double Carbo Block with Becket

    The Harken 2663 75mm Double Carbo Block with Becket, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $211.95List $240.55

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2663
    UPC
    097653113416
    Harken catalogue
    Page 24

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    75 mm2 15/16 in
    Length
    178 mm7 in
    Weight
    419 g14.8 oz
    Shackle pin diameter
    8 mm5/16 in
    Max line diameter
    14 mm9/16 in
    Max working load
    1100 kg2426 lb
    Breaking load
    2722 kg6000 lb

    From the Harken 2026 catalogue.

    CAD drawings
    End view (DWG) Side view (DWG)

    Goes with 2663

    Harken 001 2.25" Single Block
    001 2.25" Single Block $64.95List $74.10 Ships in about 3 days
    Harken 046 1.75" Dinghy Through Deck Block with Coverplate
    046 1.75" Dinghy Through Deck Block with Coverplate $65.95List $75.00 Ships in about 3 days
    Harken 086 Triple Bullet Block
    086 Triple Bullet Block $76.95List $87.35 Ships in about 3 days
    Harken 047 2.25" Through Deck Block with Coverplate
    047 2.25" Through Deck Block with Coverplate $77.95List $88.20 Ships in about 3 days
