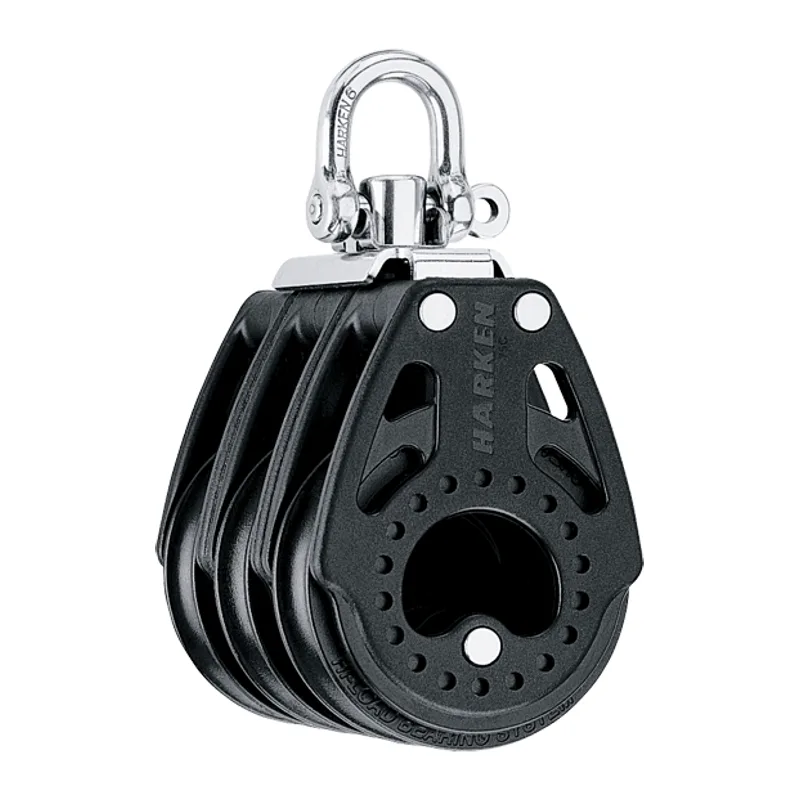

    Harken 2664 75mm Triple Carbo Block
    Harken 2664

    75mm Triple Carbo Block

    The Harken 2664 75mm Triple Carbo Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $280.95List $319.55

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2664
    UPC
    097653113423
    Harken catalogue
    Page 24

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    75 mm2 15/16 in
    Length
    152 mm6 in
    Weight
    580 g20.5 oz
    Shackle pin diameter
    8 mm5/16 in
    Max line diameter
    14 mm9/16 in
    Max working load
    1650 kg3639 lb
    Breaking load
    4535 kg10000 lb

    From the Harken 2026 catalogue.

    CAD drawings
    End view (DWG) Side view (DWG)
