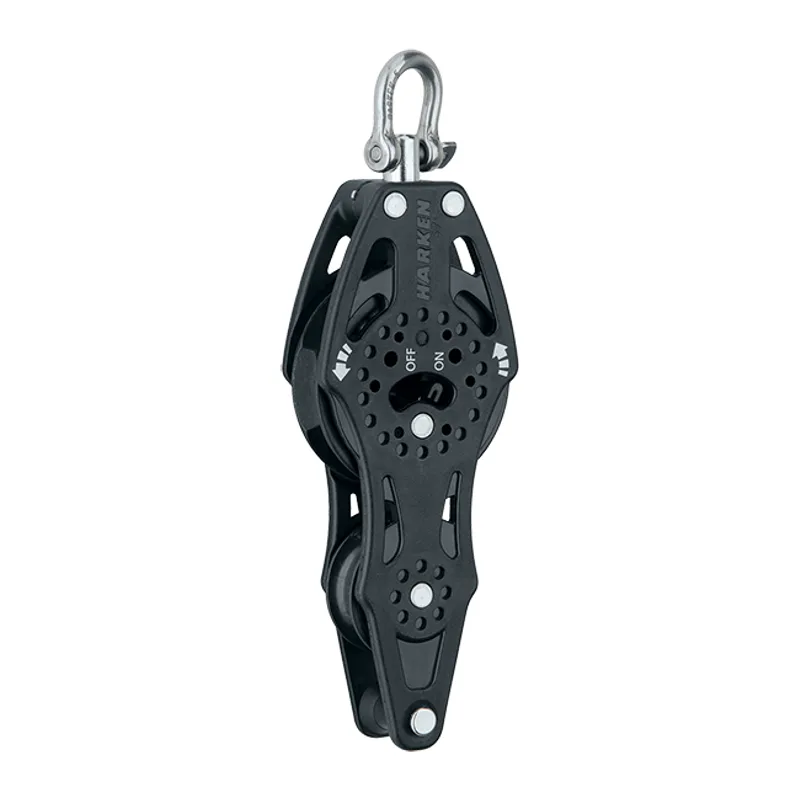

Harken 2674 57mm Carbo Fiddle Ratchet with Becket

Harken 2674

57mm Carbo Fiddle Ratchet with Becket

The Harken 2674 57mm Carbo Fiddle Ratchet with Becket, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

$114.95List $130.30

Ships in about 3 business days, plus transit.

Returns within 30 days of delivery. Returns and exchanges

Compare

Part number: 2674
UPC: 097653238225
Harken catalogue: Page 30
Harken 2026 catalogue, page
Open the whole catalogue (PDF)
Family: Small Boat and Midrange

Specifications

Sheave diameter: 57 mm2 1/4 in
Length: 143 mm5 5/8 in
Weight: 121 g4.3 oz
Shackle pin diameter: 5 mm3/16 in
Max line diameter: 10 mm3/8 in
Max working load: 359 kg792 lb
Breaking load: 1080 kg2380 lb

From the Harken 2026 catalogue.

CAD drawings

Front view (DWG) Rear view (DWG) Top view (DWG)
