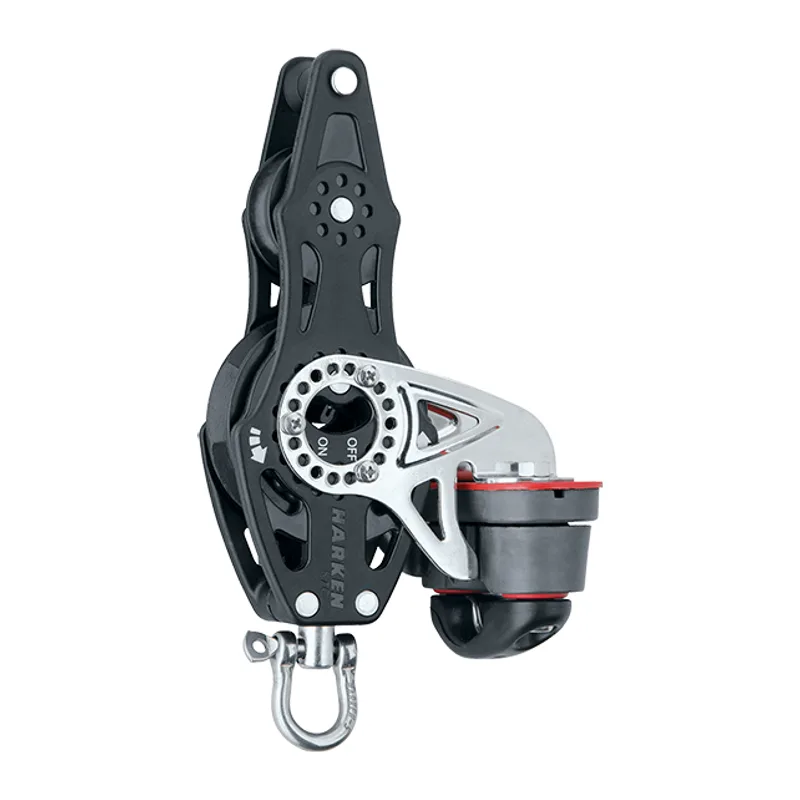

    Harken 2676 57mm Carbo Fiddle Ratchet with Becket and 150 Cam
    Harken 2676

    57mm Carbo Fiddle Ratchet with Becket and 150 Cam

    The Harken 2676 57mm Carbo Fiddle Ratchet with Becket and 150 Cam, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    Used on: J/24 vang

    $214.95List $244.00

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2676
    UPC
    097653238249
    Harken catalogue
    Page 30

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    57 mm2 1/4 in
    Length
    143 mm5 5/8 in
    Weight
    303 g10.7 oz
    Shackle pin diameter
    5 mm3/16 in
    Max line diameter
    10 mm3/8 in
    Max working load
    359 kg792 lb
    Breaking load
    1080 kg2380 lb

    From the Harken 2026 catalogue.

    CAD drawings
    Front view (DWG) Rear view (DWG) Top view (DWG)
