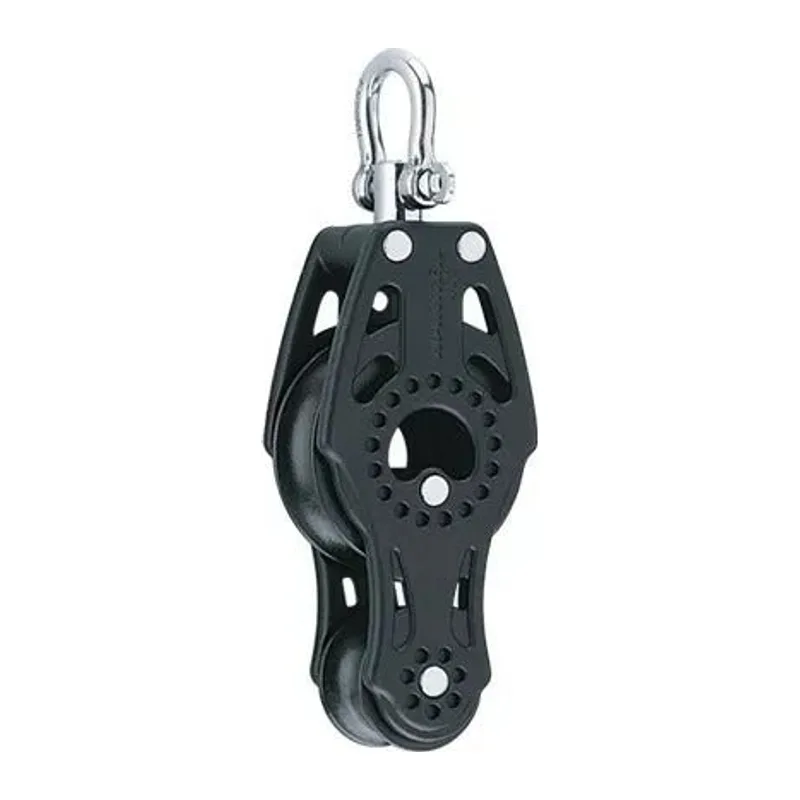

    Harken 2690 75mm Carbo Fiddle
    Harken 2690

    75mm Carbo Fiddle

    The Harken 2690 75mm Carbo Fiddle, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    Used on: J/88 mainsheet

    $116.95List $132.90

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2690
    UPC
    097653238256
    Harken catalogue
    Page 30

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    75 mm2 15/16 in
    Length
    157 mm6 3/16 in
    Weight
    238 g8.4 oz
    Shackle pin diameter
    6 mm1/4 in
    Max line diameter
    14 mm9/16 in
    Max working load
    550 kg1212 lb
    Breaking load
    1650 kg3637 lb

    From the Harken 2026 catalogue.

    CAD drawings
    Front view (DWG) Rear view (DWG) Top view (DWG)
