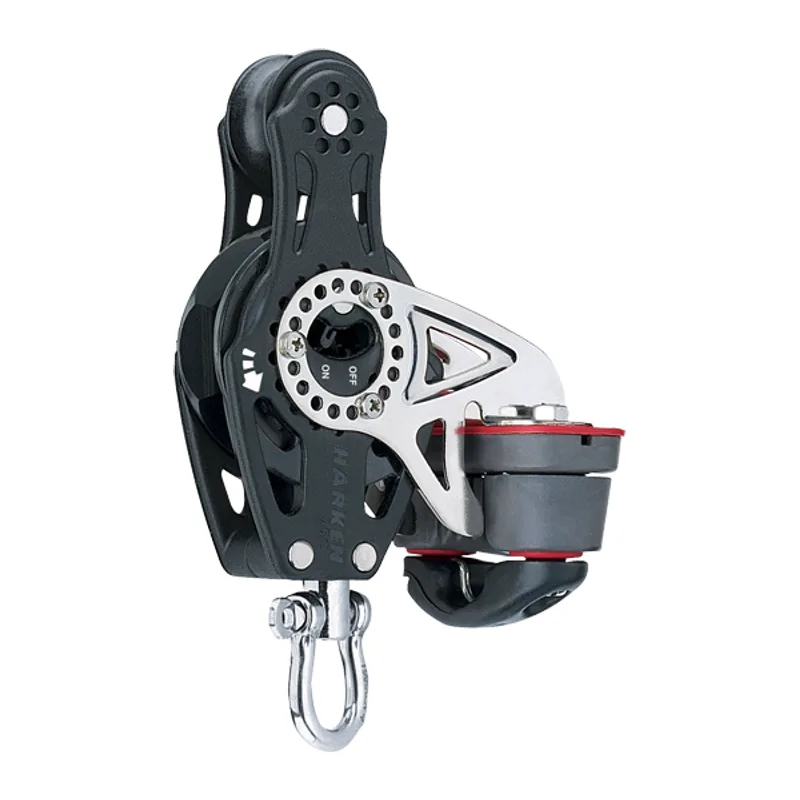

    Harken 2696 75mm Carbo Fiddle Ratchet with 150 Cam
    Harken 2696

    75mm Carbo Fiddle Ratchet with 150 Cam

    The Harken 2696 75mm Carbo Fiddle Ratchet with 150 Cam, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $257.95List $293.30

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    2696
    UPC
    097653238317
    Harken catalogue
    Page 30

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    75 mm2 15/16 in
    Length
    157 mm6 3/16 in
    Weight
    456 g16.1 oz
    Shackle pin diameter
    6 mm1/4 in
    Max line diameter
    12 mm1/2 in
    Max working load
    408 kg900 lb
    Breaking load
    1020 kg2250 lb

    From the Harken 2026 catalogue.

    CAD drawings
    Front view (DWG) Rear view (DWG) Top view (DWG)

    Goes with 2696

    Harken 086 Triple Bullet Block
    086 Triple Bullet Block $76.95List $87.35 Ships in about 3 days
    Harken 077 DN Iceboat Hexaratchet Steer Post Adapter
    077 DN Iceboat Hexaratchet Steer Post Adapter $69.95List $79.20 Ships in about 3 days
    Harken 087 Triple Bullet with Becket
    087 Triple Bullet with Becket $80.95List $91.95 Ships in about 3 days
    Harken 167 Single Bullet Swivel Block with Becket
    167 Single Bullet Swivel Block with Becket $39.95List $45.40 Ships in about 3 days
