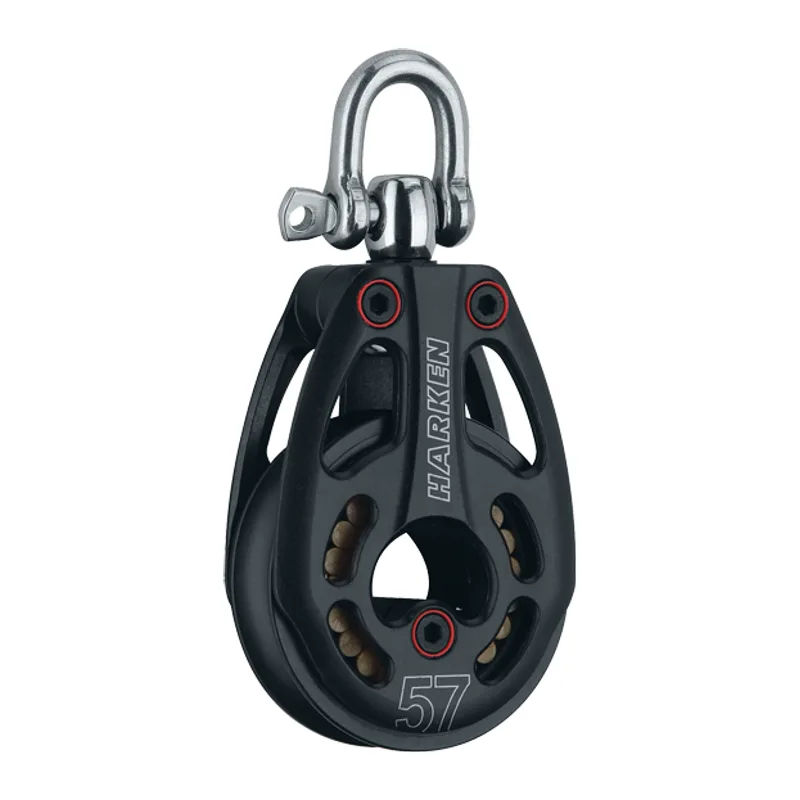

    Harken 3226 57mm Low Load Block
    Harken 3226

    57mm Low Load Block

    The Harken 3226 57mm Low Load Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $211.95List $241.00

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    3226
    UPC
    097653264453
    Harken catalogue
    Page 53

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Big Boat

    Specifications

    Sheave diameter
    57 mm2 1/4 in
    Length
    119 mm4 11/16 in
    Weight
    154 g5.44 oz
    Shackle pin diameter
    6 mm1/4 in
    Max line diameter
    12 mm7/16 in
    Max working load
    750 kg1655 lb
    Breaking load
    1500 kg3300 lb

    From the Harken 2026 catalogue.
