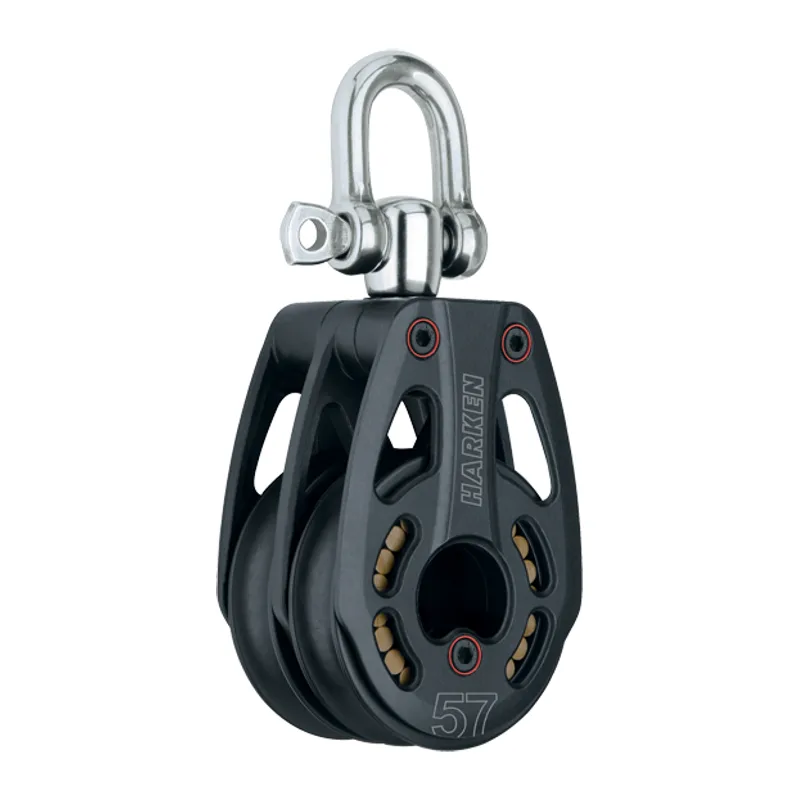

    Harken 3228 57mm Low Load Double Block
    Harken 3228

    57mm Low Load Double Block

    The Harken 3228 57mm Low Load Double Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $427.95List $486.20

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    3228
    UPC
    097653264682
    Harken catalogue
    Page 53

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Big Boat

    Specifications

    Sheave diameter
    57 mm2 1/4 in
    Length
    132 mm5 3/16 in
    Weight
    342 g12.05 oz
    Shackle pin diameter
    8 mm5/16 in
    Max line diameter
    12 mm7/16 in
    Max working load
    1250 kg2755 lb
    Breaking load
    2500 kg5510 lb

    From the Harken 2026 catalogue.
