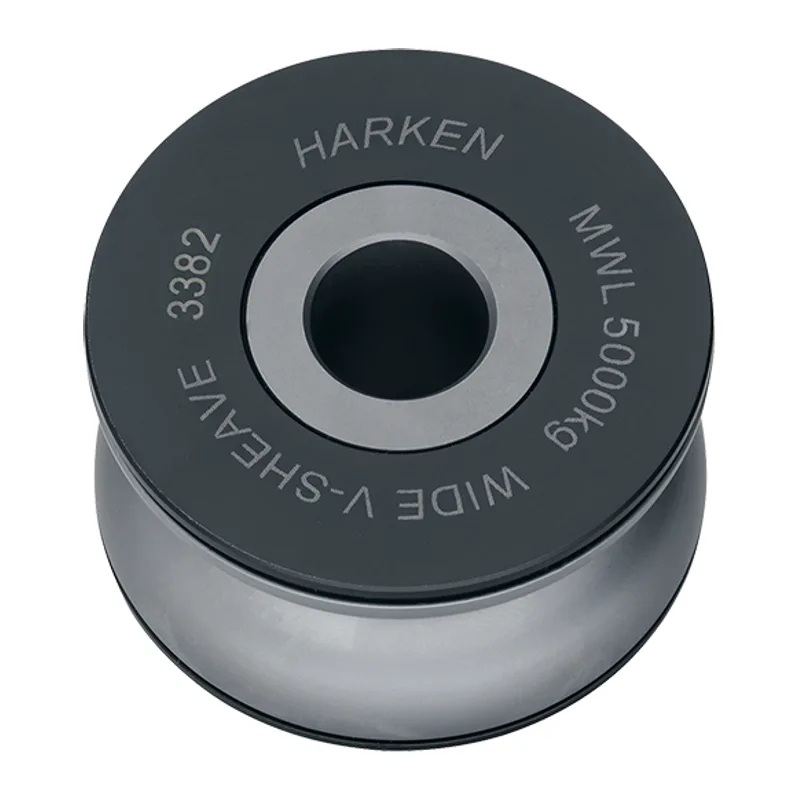

    Harken 3382 5T V Wide Sheave
    Harken 3382

    5T V Wide Sheave

    The Harken 3382 5T V Wide Sheave, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $1,634.55

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    3382
    UPC
    097653288213
    Harken catalogue
    Page 82

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Big Boat

    Specifications

    Sheave diameter
    62 mm2 7/16 in
    Weight
    182 g6.42 oz
    Max line diameter
    13 mm1/2 in
    Max working load
    5000 kg11000 lb
    Breaking load
    10000 kg22000 lb

    From the Harken 2026 catalogue.
