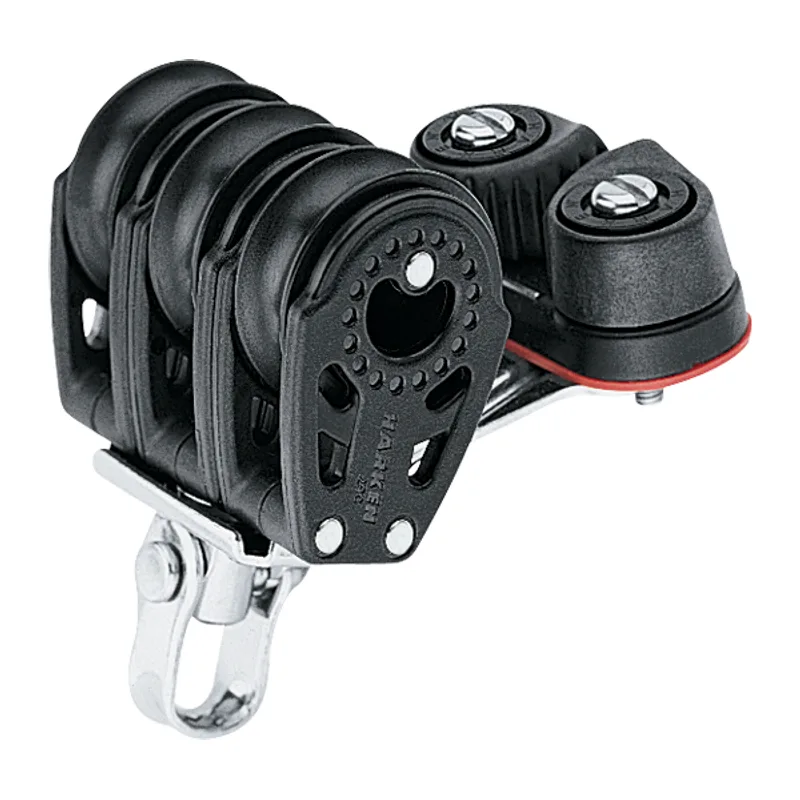

Harken 346 29mm Triple Carbo Block with Cam Cleat

Harken 346

29mm Triple Carbo Block with Cam Cleat

The Harken 346 29mm Triple Carbo Block with Cam Cleat, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

$122.95List $140.05

Ships in about 3 business days, plus transit.

Returns within 30 days of delivery. Returns and exchanges

Compare

Part number: 346
UPC: 097653100485
Harken catalogue: Page 20
Harken 2026 catalogue, page
Open the whole catalogue (PDF)
Family: Small Boat and Midrange

Specifications

Sheave diameter: 29 mm1 1/8 in
Length: 73 mm2 7/8 in
Weight: 130 g4.6 oz
Shackle pin diameter: 5 mm3/16 in
Max line diameter: 6 mm1/4 in
Max working load: 340 kg750 lb
Breaking load: 680 kg1500 lb

From the Harken 2026 catalogue.

CAD drawings

End view (DWG) Side view (DWG)
