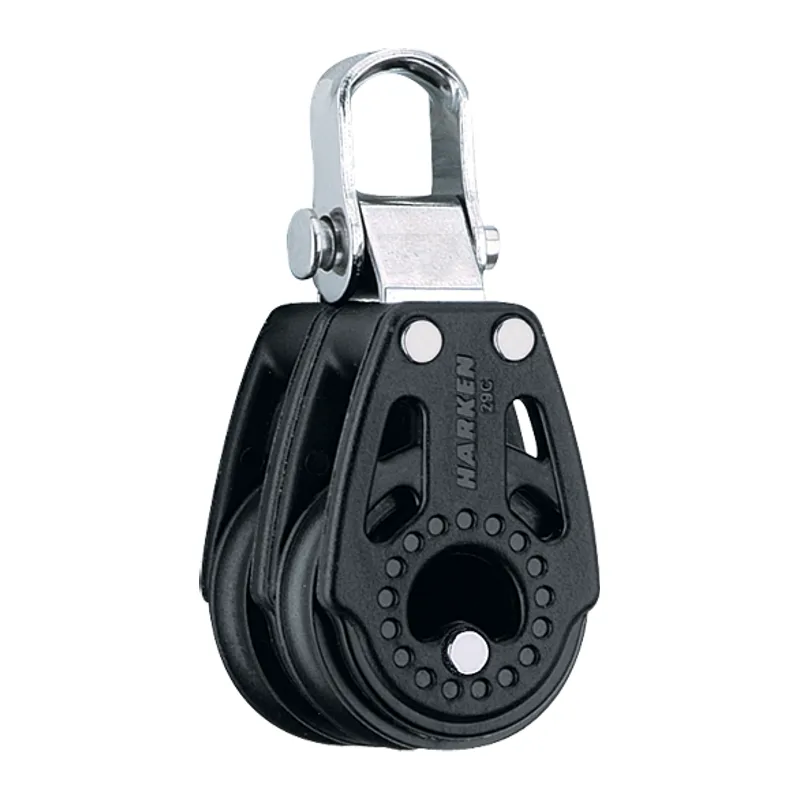

    Harken 381 29mm Carbo Double Fixed Block
    Harken 381

    29mm Carbo Double Fixed Block

    The Harken 381 29mm Carbo Double Fixed Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $45.95List $51.70

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    381
    UPC
    097653134190
    Harken catalogue
    Page 20

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    29 mm1 1/8 in
    Length
    54 mm2 1/8 in
    Weight
    34 g1.2 oz
    Max line diameter
    8 mm5/16 in
    Max working load
    299 kg660 lb
    Breaking load
    737 kg1625 lb

    From the Harken 2026 catalogue.

    CAD drawings
    End view (DWG) Side view (DWG)
