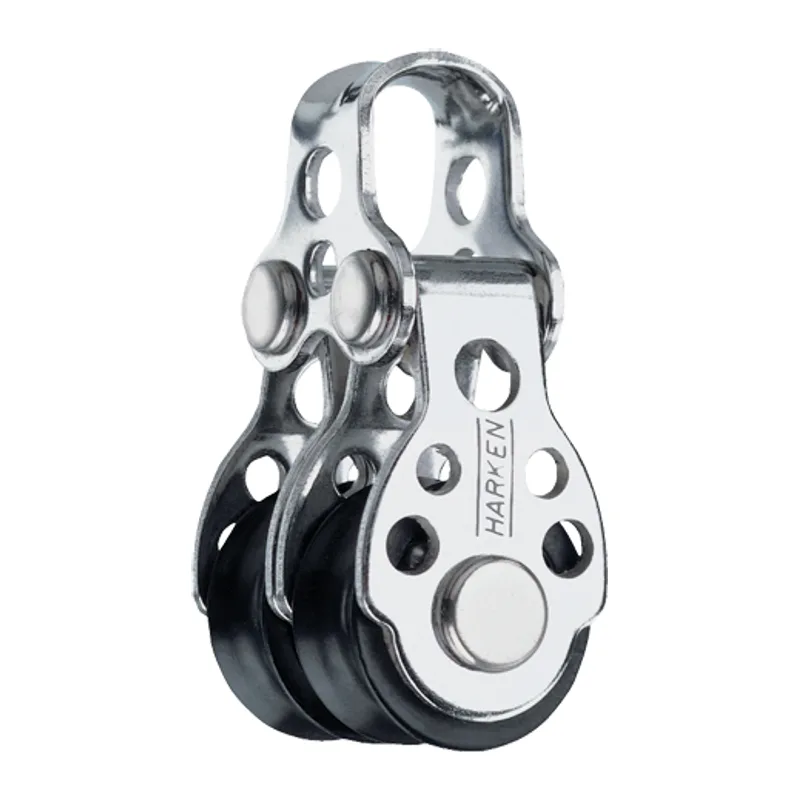

Harken 406 16 mm Double Air Block

Harken 406

16 mm Double Air Block

The Harken 406 16 mm Double Air Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

$36.95List $42.15

Ships in about 3 business days, plus transit.

Returns within 30 days of delivery. Returns and exchanges

Compare

Part number: 406
UPC: 097653014928
Harken catalogue: Page 33
Harken 2026 catalogue, page
Open the whole catalogue (PDF)
Family: Small Boat and Midrange

Specifications

Sheave diameter: 16 mm5/8 in
Length: 43 mm1 11/16 in
Weight: 27 g0.94 oz
Max line diameter: 5 mm7/32 in
Max working load: 204 kg450 lb
Breaking load: 544 kg1200 lb

From the Harken 2026 catalogue.

CAD drawings

End view (DWG) Side view (DWG)
