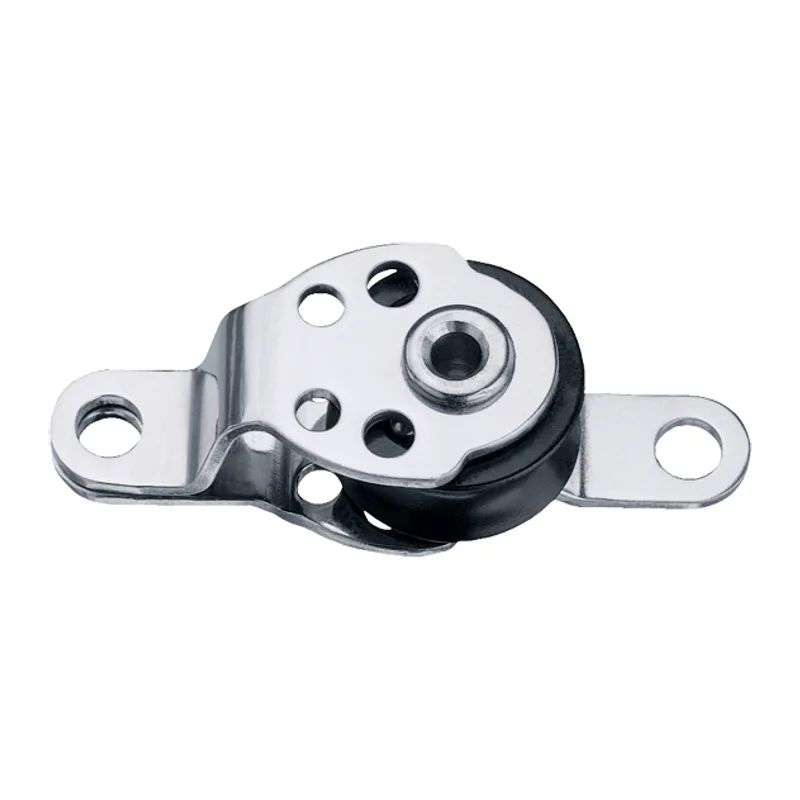

Harken 416 16mm Cheek Air Block

Harken 416

16mm Cheek Air Block

The Harken 416 16mm Cheek Air Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

$20.95List $23.40

Ships in about 3 business days, plus transit.

Returns within 30 days of delivery. Returns and exchanges

Compare

Part number: 416
UPC: 097653016076
Harken catalogue: Page 33
Harken 2026 catalogue, page
Open the whole catalogue (PDF)
Family: Small Boat and Midrange

Specifications

Sheave diameter: 16 mm5/8 in
Length: 46 mm1 13/16 in
Weight: 12 g0.44 oz
Max line diameter: 5 mm7/32 in
Max working load: 113 kg250 lb
Breaking load: 544 kg1200 lb

From the Harken 2026 catalogue.

CAD drawings

Side view (DWG) Top view (DWG)
