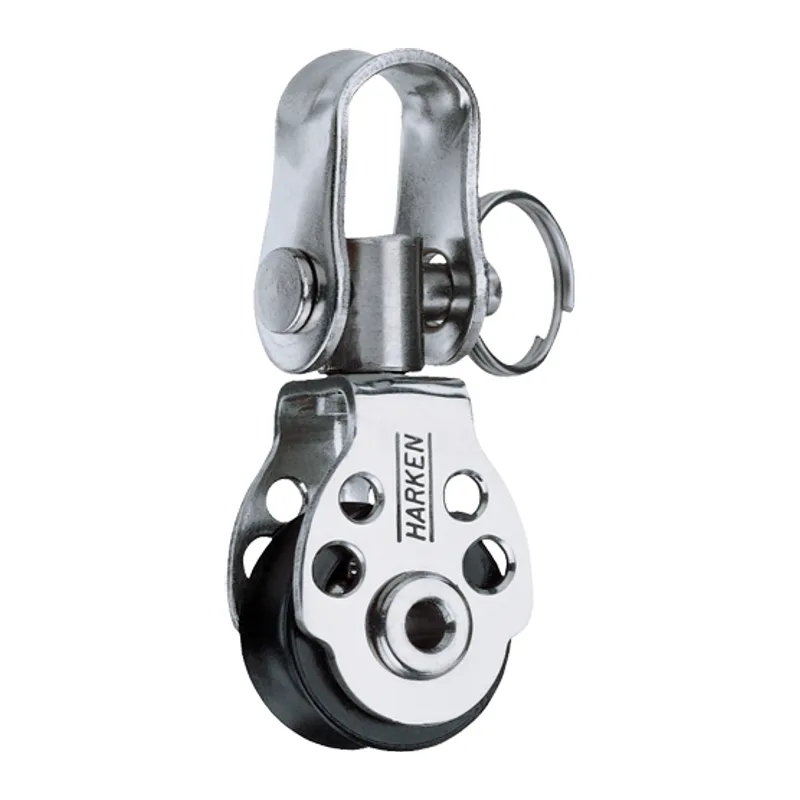

Harken 417 16mm Swivel Air Block

Harken 417

16mm Swivel Air Block

The Harken 417 16mm Swivel Air Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

$31.95List $36.40

Ships in about 3 business days, plus transit.

Returns within 30 days of delivery. Returns and exchanges

Compare

Part number: 417
UPC: 097653016069
Harken catalogue: Page 33
Harken 2026 catalogue, page
Open the whole catalogue (PDF)
Family: Small Boat and Midrange

Specifications

Sheave diameter: 16 mm5/8 in
Length: 46 mm1 13/16 in
Weight: 18 g0.63 oz
Max line diameter: 5 mm7/32 in
Max working load: 113 kg250 lb
Breaking load: 339 kg750 lb

From the Harken 2026 catalogue.

CAD drawings

End view (DWG) Side view (DWG)
