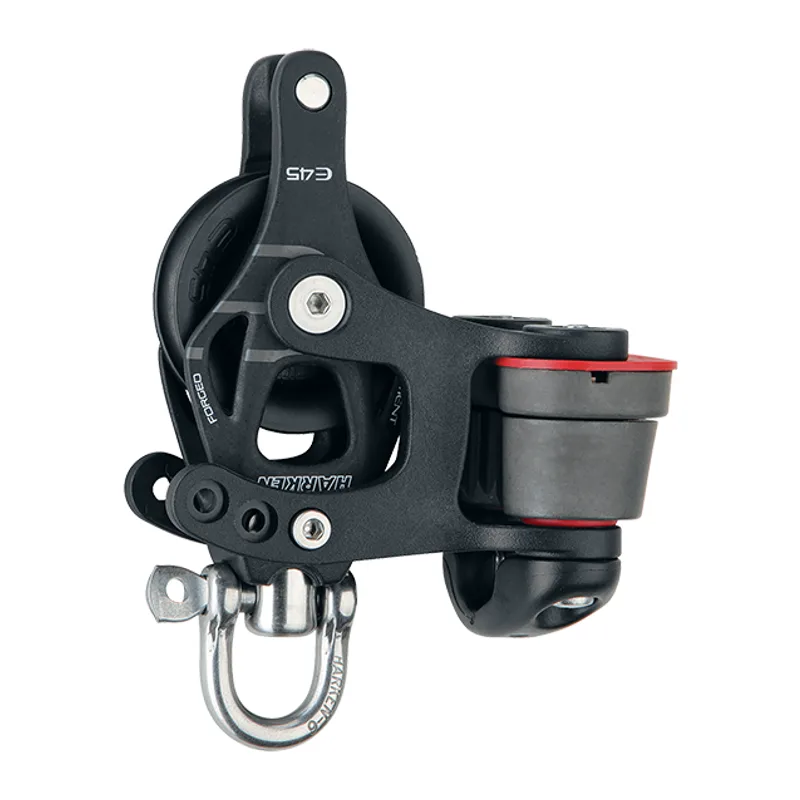

    Harken 6236 45mm Element Single Swivel with 150 Cam & Becket
    Harken 6236

    45mm Element Single Swivel with 150 Cam & Becket

    The Harken 6236 45mm Element Single Swivel with 150 Cam & Becket, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $105.20

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    6236
    UPC
    097653283850
    Harken catalogue
    Page 47

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Big Boat

    Specifications

    Sheave diameter
    45 mm1 3/4 in
    Length
    121 mm4 3/4 in
    Weight
    230 g8.1 oz
    Shackle pin diameter
    6 mm1/4 in
    Max line diameter
    12 mm1/2 in
    Max working load
    272 kg600 lb
    Breaking load
    544 kg1200 lb

    From the Harken 2026 catalogue.
