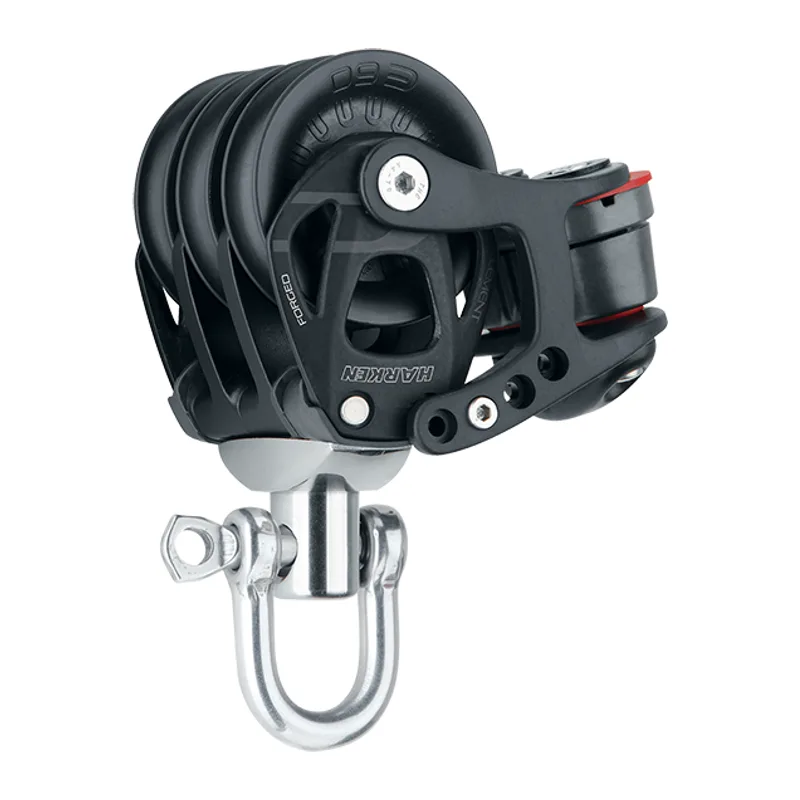

    Harken 6274 60mm Element Triple Swivel with 150 Cam
    Harken 6274

    60mm Element Triple Swivel with 150 Cam

    The Harken 6274 60mm Element Triple Swivel with 150 Cam, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $241.95

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    6274
    UPC
    097653284208
    Harken catalogue
    Page 48

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Big Boat

    Specifications

    Sheave diameter
    60 mm2 3/8 in
    Length
    146 mm5 3/4 in
    Weight
    690 g24.2 oz
    Shackle pin diameter
    8 mm5/16 in
    Max line diameter
    12 mm1/2 in
    Max working load
    680 kg1499 lb
    Breaking load
    1360 kg2998 lb

    From the Harken 2026 catalogue.

    Goes with 6274

    Harken 3392 45mm Single Swivel Block with Becket
    3392 45mm Single Swivel Block with Becket $274.95List $312.10 Ships in about 3 days
    Harken 3394 45mm Double Swivel Block with Becket
    3394 45mm Double Swivel Block with Becket $454.95List $517.00 Ships in about 3 days
    Harken 3393 45mm Double Swivel Block
    3393 45mm Double Swivel Block $399.95List $453.90 Ships in about 3 days
    Harken 3391 45mm Single Swivel Block
    3391 45mm Single Swivel Block $211.95List $240.45 Ships in about 3 days
