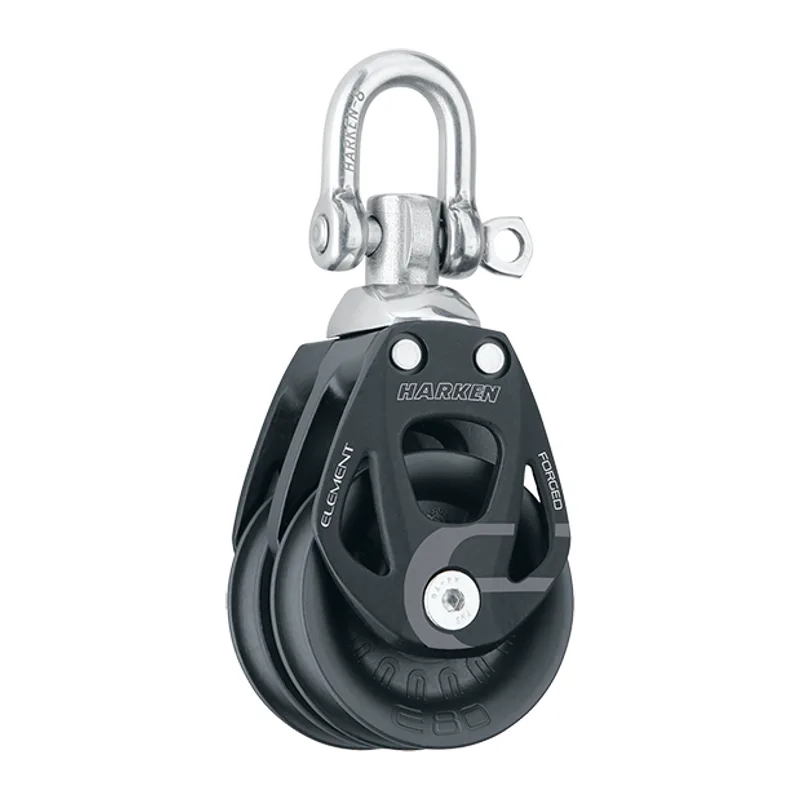

    Harken 6296 80mm Element Double Swivel Block
    Harken 6296

    80mm Element Double Swivel Block

    The Harken 6296 80mm Element Double Swivel Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $220.70

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    6296
    UPC
    097653284048
    Harken catalogue
    Page 49

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Big Boat

    Specifications

    Sheave diameter
    80 mm3 1/8 in
    Length
    191 mm7 1/2 in
    Weight
    915 g32.0 oz
    Shackle pin diameter
    12 mm1/2 in
    Max line diameter
    16 mm5/8 in
    Max working load
    2750 kg6064 lb
    Breaking load
    5500 kg12128 lb

    From the Harken 2026 catalogue.
