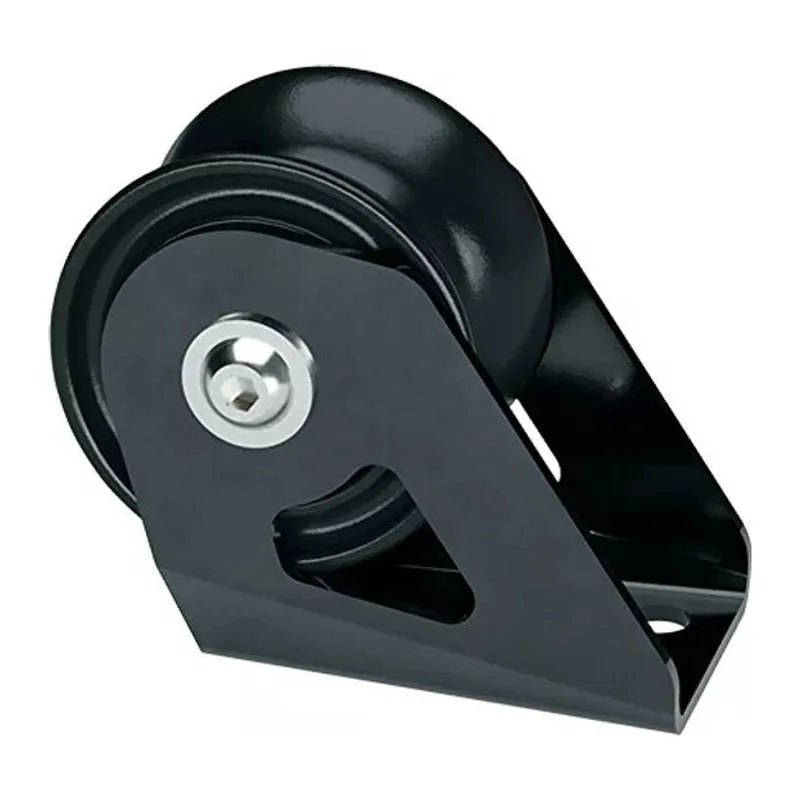

    Harken 9030 45mm Tulip Vertical Fixed Block
    Harken 9030

    45mm Tulip Vertical Fixed Block

    The Harken 9030 45mm Tulip Vertical Fixed Block, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $100.95List $115.05

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    9030
    UPC
    097653298069
    Harken catalogue
    Page 61

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Big Boat

    Specifications

    Sheave diameter
    45 mm1 3/4 in
    Length
    69 mm2 11/16 in
    Weight
    187 g6.6 oz
    Max line diameter
    12 mm1/2 in
    Max working load
    1247 kg2750 lb
    Breaking load
    2495 kg5500 lb

    From the Harken 2026 catalogue.
