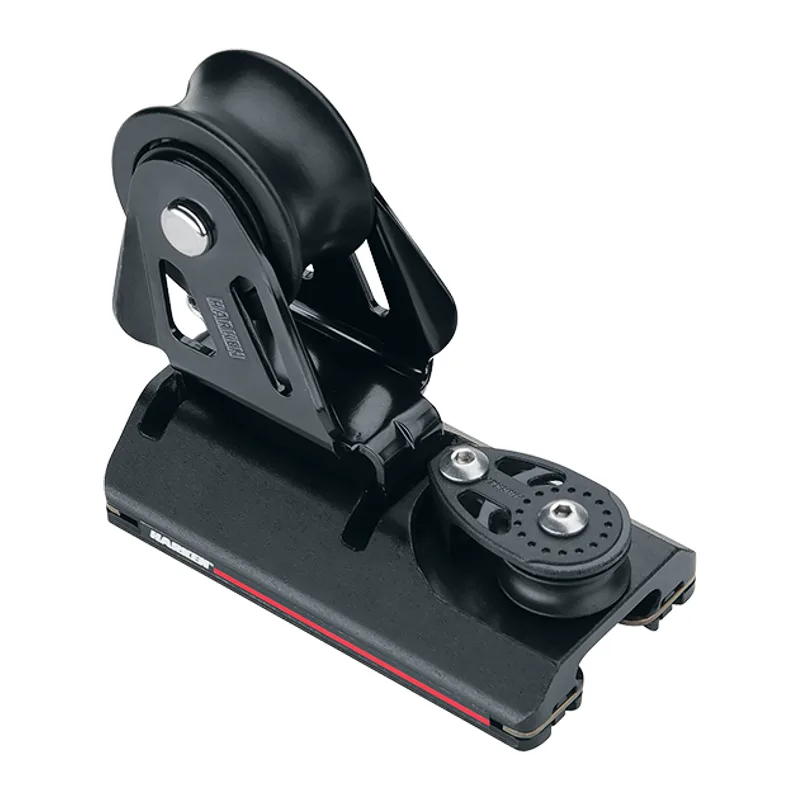

    Harken G2227B SB 2:1 Genoa Lead Performance Car
    Harken G2227B

    SB 2:1 Genoa Lead Performance Car

    The Harken G2227B SB 2:1 Genoa Lead Performance Car, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $507.95List $576.50

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    G2227B
    UPC
    097653248262
    Harken catalogue
    Page 116

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    45 mm1 3/4 in
    Length
    105 mm4 1/8 in
    Weight
    389 g13.71 oz
    Max working load
    567 kg1250 lb
    Breaking load
    1134 kg2500 lb

    From the Harken 2026 catalogue.

    CAD drawings
    Front view (DWG) Rear view (DWG) Top view (DWG)
