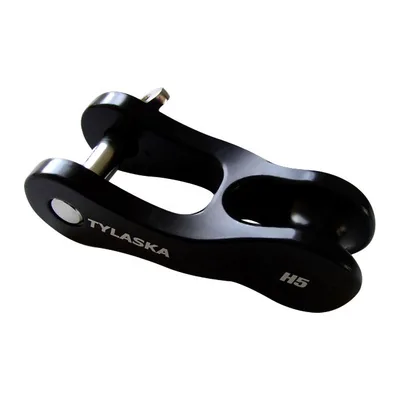

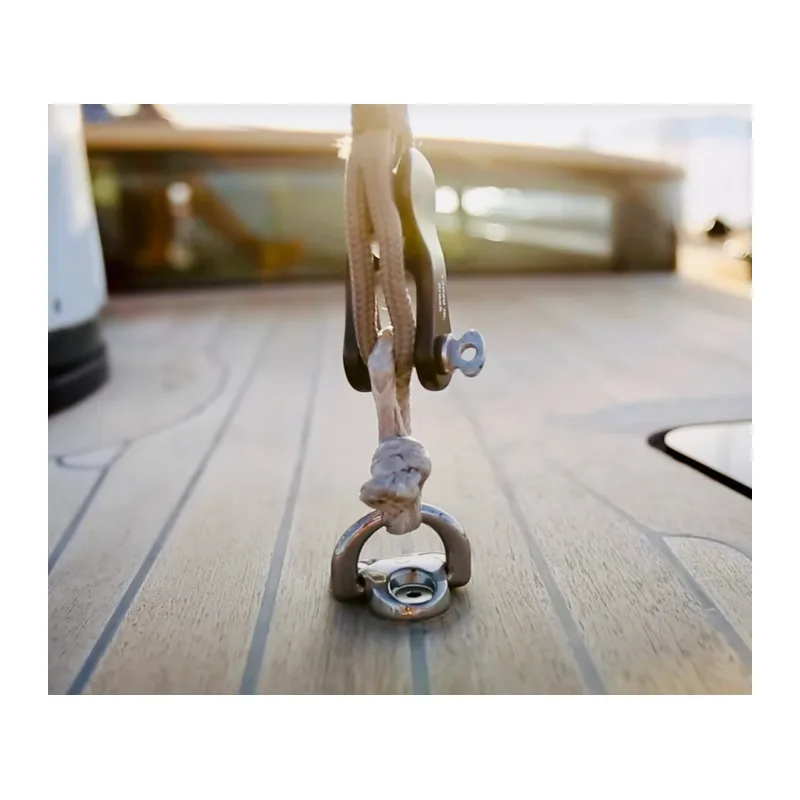

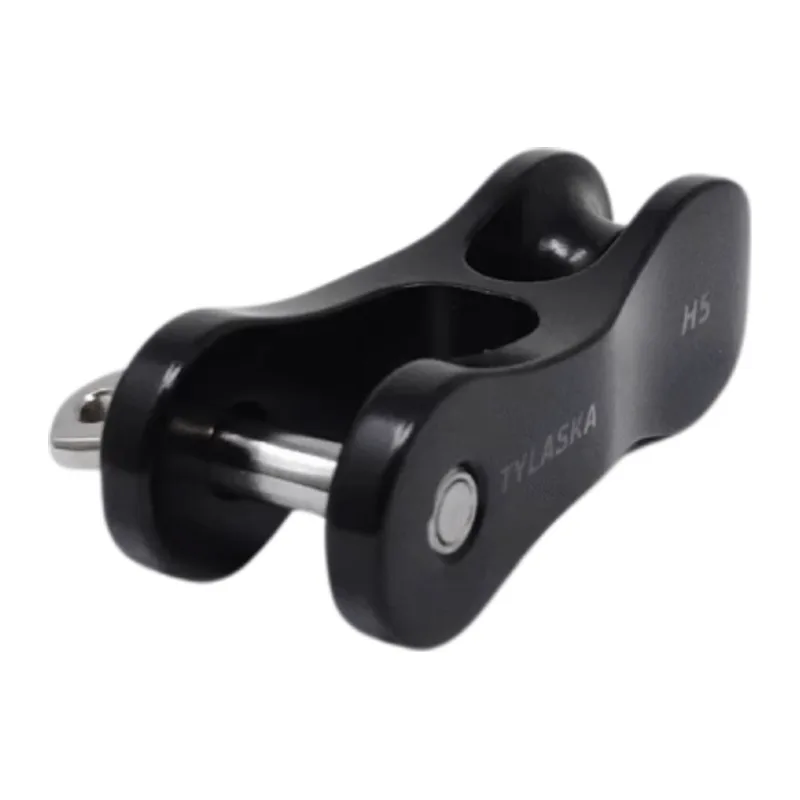

Tylaska TY1405H5 Fixed Thimble Halyard Shackle
The Tylaska TY1405 H5 Fixed Thimble Halyard Shackle, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY1405
- Family
- Tylaska
About this part
For boats 20-30 ft
Captive stainless steel cross pin
Machined 6061 aluminum
Recessed thread allows for full throat opening
Hard-coat anodized for maximum coating durability
Available with a fixed thimble or a sheave for 2:1 purchases
Specifications
- Breaking Load
- 2270 kg
- Working Load Limit
- 1130 kg
- Weight
- 52 g
- Max Line Size
- 10 mm
- Dimension A (see drawing)
- 22 mm
- Dimension B (see drawing)
- 12.6 mm
- Dimension C (see drawing)
- 73.3 mm
- Dimension D (see drawing)
- 27.2 mm
- Dimension E (see drawing)
- 16.1 mm
- Dimension F (see drawing)
- 6.6 mm
From the Tylaska catalogue.
