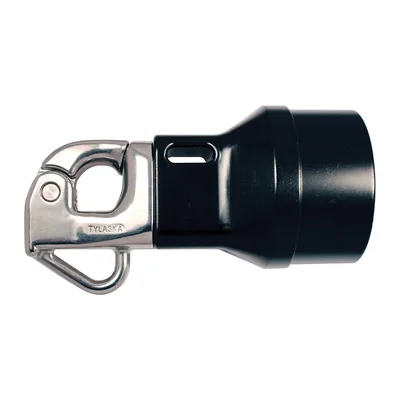

Tylaska TY2322Intrepid II Pole End
The Tylaska TY2322 Intrepid II Pole End, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY2322
- Family
- Tylaska
About this part
Heat treated 17-4 PH stainless steel
Machined 6061 aerospace aluminum base
Ideal for boats 30-80 ft
Specifications

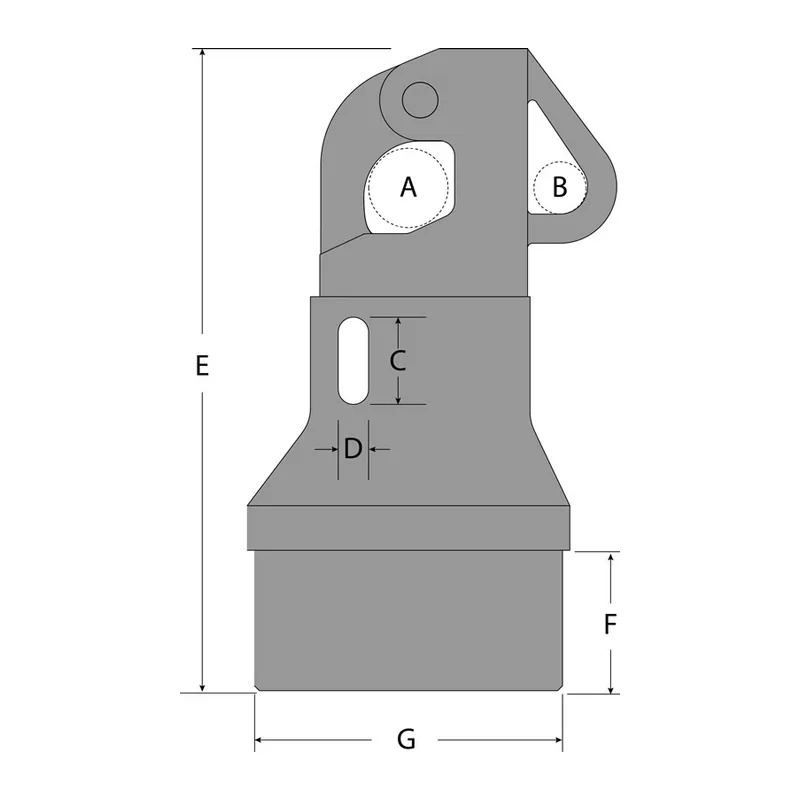

- Dimension A (see drawing)
- 29 mm
- Dimension B (see drawing)
- 19 mm
- Dimension C (see drawing)
- 27 mm
- Dimension D (see drawing)
- 9 mm
- Dimension E (see drawing)
- 202 mm
- Dimension F (see drawing)
- 43 mm
- Dimension G (see drawing)
- 96 mm
From the Tylaska catalogue.
