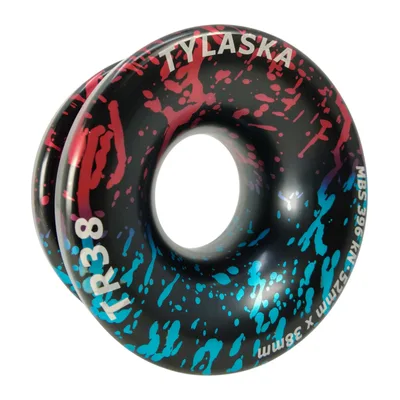

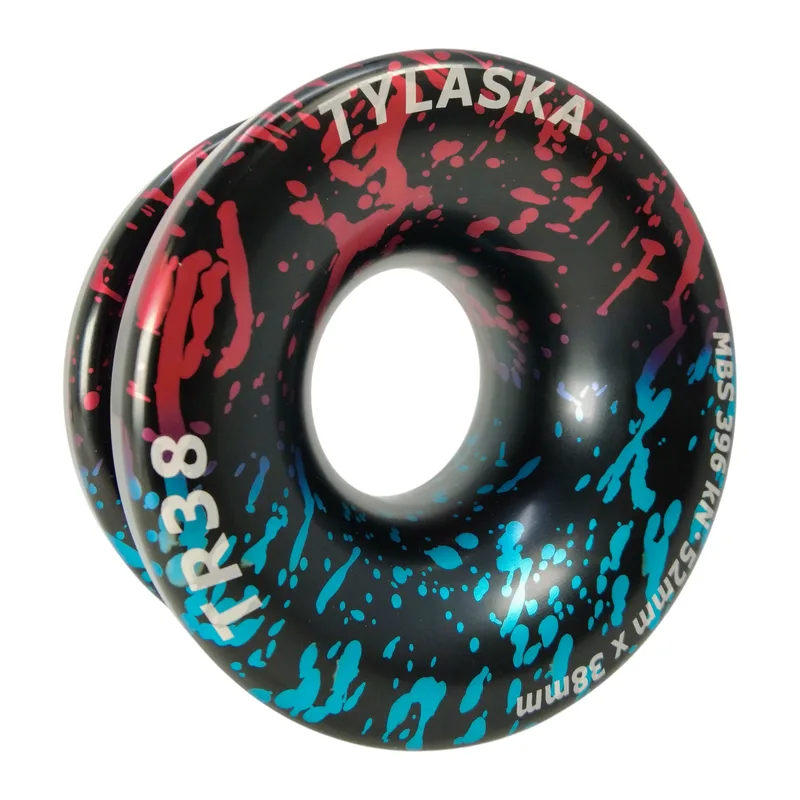

Tylaska TY2700-38-CLRTR38 Rigging Ring, Limited Edition Fire and Ice Splatter
The Tylaska TY2700-38-CLR TR38 Rigging Ring, Limited Edition Fire and Ice Splatter, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY2700-38-CLR
- Family
- Tylaska
About this part
Hole diameter: 52mm
Groove width: 38mm
396 kN MBS
Machined 6061 aluminum
Hard-coat anodized* ( – Black variation only)
The TR38 is a versatile rigging ring capable of enormous load handling.
With a 2″ ID bore, multiple attachment configurations are available for the creative rigger.
The bend radius is generous with this nearly 3″ wide ring for line-friendly rigging. This increases line life as well as providing smooth and consistent drops with even extremely large and heavy pieces.
Specifications
- Weight
- 1265 g
- Minimum Breaking Strength
- 396 kN
- Dimension A (see drawing)
- 52 mm
- Dimension B (see drawing)
- 38 mm
- Dimension C (see drawing)
- 137 mm
- Dimension D (see drawing)
- 74 mm
From the Tylaska catalogue.
