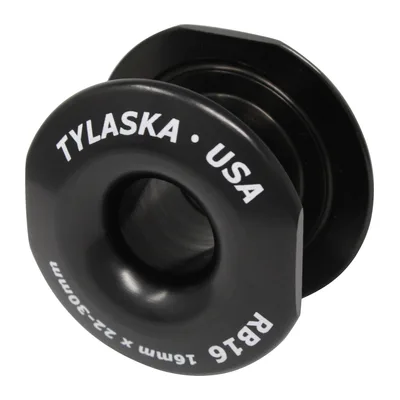

Tylaska TY2816-22Two-Piece 16mm Rope Bushing 16-22mm
The Tylaska TY2816-22 Two-Piece 16mm Rope Bushing 16-22mm, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY2816-22
- Family
- Tylaska
About this part
Machined 6061 aluminum
Hard-coat anodized for maximum coating durability
Large entry radius minimizes rope friction
Easy to install two-piece threaded design
Specifications
- Weight
- 37.6 g
- Dimension A (see drawing)
- 16 mm
- Dimension B (see drawing)
- 16-22 mm
- Dimension C (see drawing)
- 47 mm
- Dimension D (see drawing)
- 24 mm
- Dimension E (see drawing)
- 44 mm
From the Tylaska catalogue.
