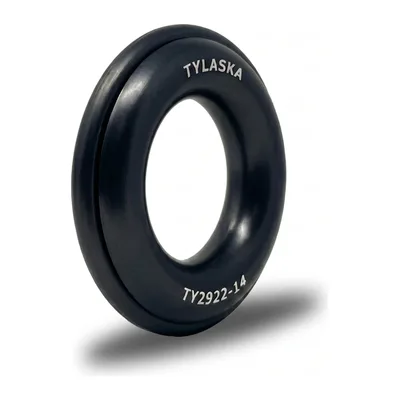

    Tylaska TY2922-14 Solid Ring Inhauler
    Tylaska TY2922-14 Solid Ring Inhauler
    Tylaska TY2922-14 Solid Ring Inhauler

    Tylaska TY2922-14Solid Ring Inhauler

    The Tylaska TY2922-14 Solid Ring Inhauler, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.

    $53.13

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    TY2922-14
    Family
    Tylaska

    About this part

    Line-friendly, full-round interior surface

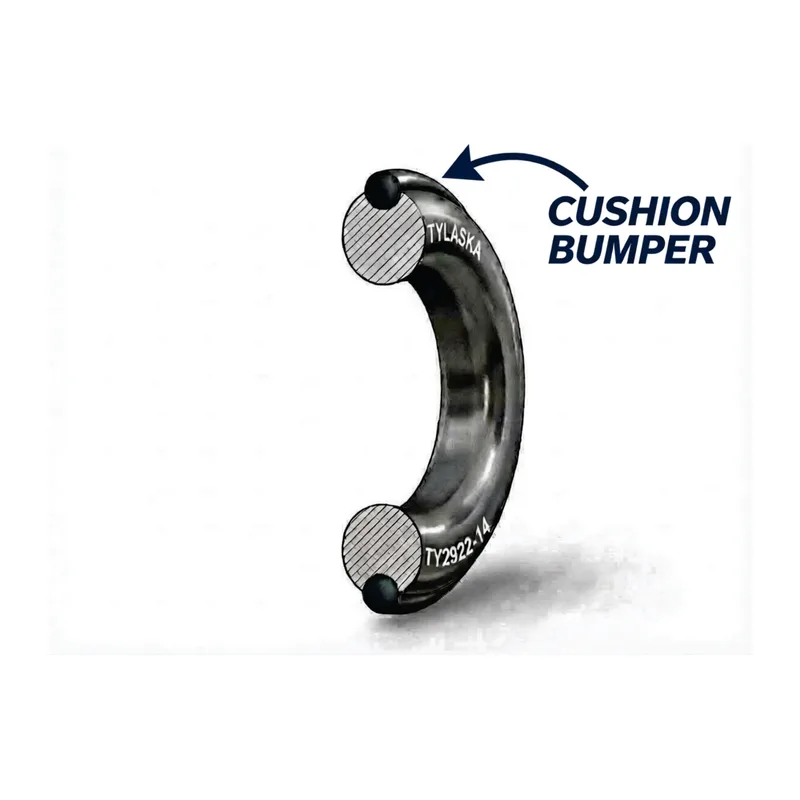

    O-Ring cushion on ring exterior

    36mm Inside Diameter

    High strength 7075 series aluminum

    MBS 4903kg

    Industrial Hardcoat Anodizing

    Specifications

    Breaking Load
    4903 kg
    Weight
    64 g

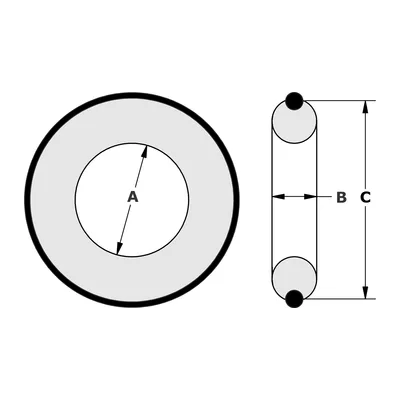

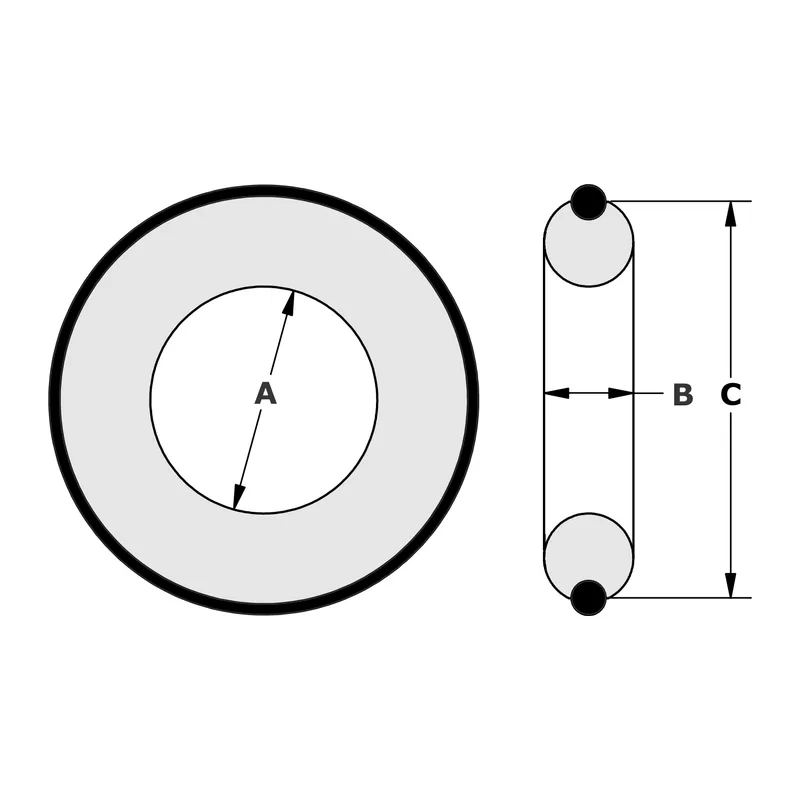

    Dimension A (see drawing)
    36 mm
    Dimension B (see drawing)
    14 mm
    Dimension C (see drawing)
    62 mm

    From the Tylaska catalogue.
